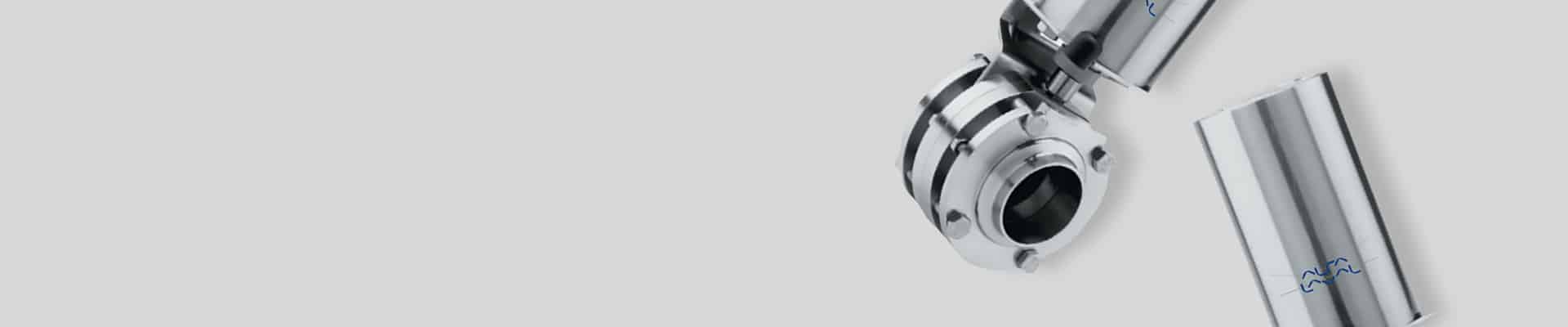

LKB Butterfly Valve
Alfa Laval LKB Valve
The Alfa Laval LKB Butterfly Valve is a reliable, hygienic in-line Valve for routing low- and medium-viscosity liquids in stainless steel pipe systems due to its substantial opening area and low flow resistance. Choose between manual or automatic operation using either a standard handle or Pneumatic Actuator. It is widely used in hygienic applications across the Dairy, Food, Beverage, Brewery and many other industries.
Optimise flow control and quickly bring Valves online using optional intelligent Valve Control Units with auto-setup function. Maintenance is fast and economical; no special tools are required when replacing a single long-life component.
LKB Butterfly Valve Benefits
- High-performance, low flow resistance shutoff Valve
- Maintenance-friendly, minimising service downtime
- Cost-effective solution for straightforward flow control
- Space-saving, economical construction
- High process hygiene
Alfa Laval LKB Valve Technical Data
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Temperature range: -10 °C to + 140 °C (EPDM)*
*However max. 95 °C when operating the Valve (All seals)
Actuator
Max. air pressure:
Min. air pressure, NC and NO:
Temperature range:
Air consumption (litres free air):
Weight:
600 kPa (6 bar)
400 kPa (4 bar)
-25 °C to +90 °C
ø85 mm: 0.24 x p (bar)
ø133 mm: 0.95 x p (bar)
ø85 mm: 3 kg
ø133 mm: 12 kg
ATEX
Classification: II 2 G D*
* This equipment is outside the scope of the directive 2014/34/EU and must not carry a separate CE marking according to the directive as the equipment has no own ignition source
Download the Full
Specification Sheet
How the LKB Valve Works
The LKB Butterfly Valve can be operated with a pneumatic actuator, or a handle. There are three versions: normally closed (NC); normally open (NO); and air/air activated (A/A).
For pneumatic operation, an actuator rotates the shaft 90° using axial piston motion. Torque increases as the Valve disc contacts the Valve’s seal ring, to close the Valve seat properly.
For manual operation, a handle locks the Valve open or closed. Two-position, four-position, regulating 90°-position, and multi-position handles are available. Indication units can be mounted on manual Valves for feedback on their position.
LKB Butterfly Valve Documents
Recent Success Story
Helping a Home and Personal Care Company Boost Growth by 21%
When the Dutch packaging company Kompak Nederland BV wanted to build a state-of-the-art factory for co-making and co-packing 15,000 tons of products a year, they enlisted Alfa Laval for equipment supply and engineering services.
Extend the performance of your Valves
LKB Butterfly Valve
Servicing & Maintenance
LKB Butterfly Valves are designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the Dairy, Food, Brewery and Beverage industries, among many others.
