ThinkTop V50 and V70

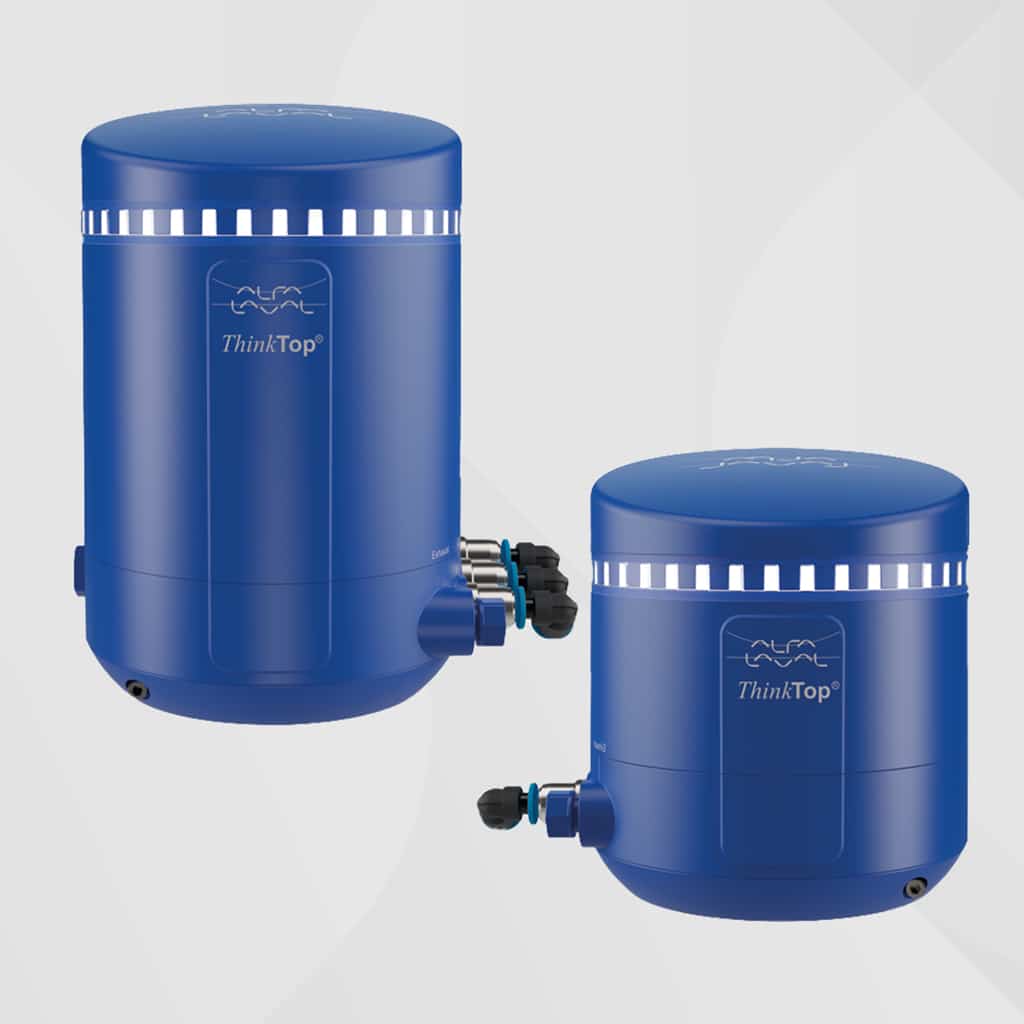

Alfa Laval ThinkTop V50 and V70 Valve Control Units
Alfa Laval ThinkTop V50 and V70 are a compact Valve Control Unit for hygienic valves. They offer a single sensor solution and can be fitted with 0 or 1 solenoid Valves, ensuring unmatched control of Alfa Laval DV-ST, Butterfly Valves and Single Seat Valves for use in the Dairy, Food, Beverage, Brewery and Pharmaceutical industries.
The ThinkTop V50 and V70 are compatible with previous versions and can be retrofitted to Alfa Laval Valves. They offer features like Auto, Live, and Flex Setup, which automate the setup process. The V70 includes burst seat clean, while both models offer pulse seat clean, optimising cleaning sequences to save up to 95% of CIP liquid.
ThinkTop V50/V70 USPs
Compact Valve Control Units with advanced automation capabilities reduce maintenance requirements whilst optimising cleaning sequences to save up to 95% CIP liquid.
ThinkTop V50 and V70 Benefits
- Auto setup
- Smart, continuous monitoring through 24/7 self-diagnostics
- 360° LED status indication, easily visible from all angles
- Built-to-last: IP69K rating and vibration proof
- Save on CIP liquid consumption
- Burst seat clean
- Pulse seat clean
- Exchangeable (threaded) air fittings
Material
Plastic parts: Nylon PA 12
Steel parts: 1.4301 / 304
Gaskets: Nitril / NBR
Air fittings: Nickel plated / Nylon PA6
M12 chassis connector: Stainless steel / Gold plated pins
Environment
Working temperature
Protection class (IP): IP69K
Protection class (NEMA): 4, 4X and 6
Hazardous area: ATEX and IECEx in preperation
ThinkTop V50 and V70 Technical Data

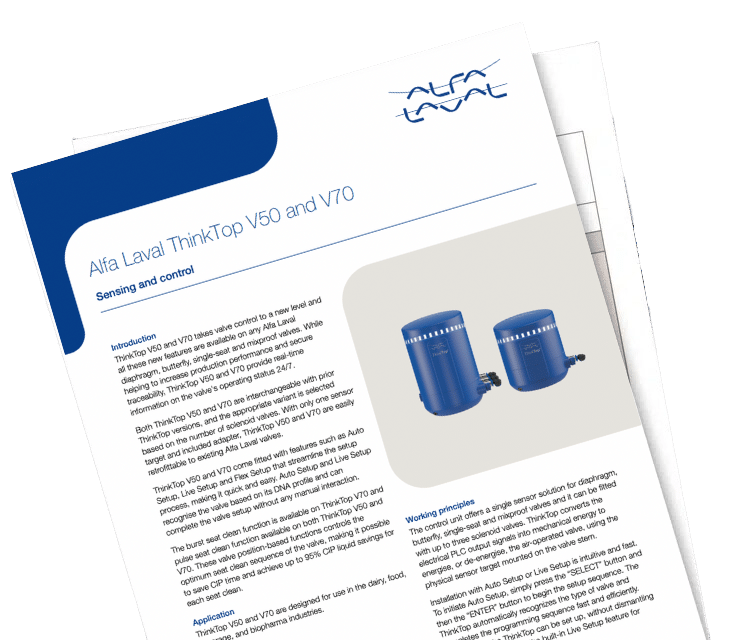

Download the Full
Specification Sheet
ThinkTop V50 and V70 Key Features
Flexible
ThinkTop control units are interchangeable with prior ThinkTop versions, and the appropriate variant is selected based on the number of solenoid Valves. With only one sensor target and included adapter, ThinkTops are easily retrofittable to existing Alfa Laval valves.
Simple Installation
ThinkTop come fitted with features such as Auto Setup, Live Setup and Flex Setup that streamline the setup process, making it quick and easy. Auto Setup and Live Setup recognise the Valve based on its DNA profile and can complete the Valve setup without any manual interaction.
Easy-to-Access Digital Service and Support
Access the service instruction manual and videos online or get the direct support you need using a convenient QR code located on the Alfa Laval ThinkTop housing.
The V-series fits all Alfa Laval Hygienic Valves. Select the right Alfa Laval ThinkTop valve control unit for your hygienic process needs based on the number of solenoid Valves required. The ThinkTop series fit on top of the Alfa Laval DV-ST, Butterfly, Single Seat, SMP-BC and UMP CIP valves.
How ThinkTop Control Units Work
Installation with Auto Setup or Live Setup is intuitive and fast. To initiate Auto Setup, simply press the “SELECT” button and then the “ENTER” button to begin the setup sequence. The ThinkTop automatically recognises the type of valve and completes the programming sequence fast and efficiently.
Alternatively, the ThinkTop can be set up without dismantling the control head, using the built-in Live Setup feature for remote configuration.
ThinkTop V50 and V70 Documents
Recent Success Story
Hygienic Alfa Laval Plant Upgrade Boosts Russian Dairy Capacity by 50%
Moloko Dairy’s milk reception plant was upgraded with ThinkTop Valve sensing, Alfa Laval Unique SSV valves, LKB Valves, and control units to increase production capabilities of whole milk, sour cream and yoghurt.
Extend the performance of your ThinkTop
ThinkTop V50 and V70 Servicing & Maintenance
The ThinkTop V50 and V70 is designed for use in the Dairy, Food, Beverage, and Biopharma industries, among many others.
Related Industries
Designed for controlling process Valves in the Beverage industry, the ThinkTop V50 and V70 offer robust performance, providing accurate control and maintaining product quality.
The ThinkTop V50 and V70 are ideal for controlling process Valves in the Food industry, ensuring precise, reliable operation and compliance with hygiene standards.
Enquire About the ThinkTop V50 and V70
Alfa Laval ThinkTop FAQs
ThinkTop V50 and V70 automate and monitor Valve operations, ensuring precision and efficiency in hygienic processing industries like Food, Beverage, and Pharmaceuticals.
ThinkTop V50 and V70 feature faster setup, enhanced diagnostics, energy-efficient operation, and compatibility with modern communication protocols like IO-Link and AS-Interface.
Yes, they are designed to work with most standard Valve systems and can be easily retrofitted.
Yes, they have IP66, IP67, and IP69K ratings, ensuring durability in washdown and challenging conditions.
Minimal maintenance is needed due to their robust design and self-diagnostic capabilities.
The ThinkTop V50 and V70 units support IO-Link, AS-Interface, and digital feedback for seamless integration with control systems.
