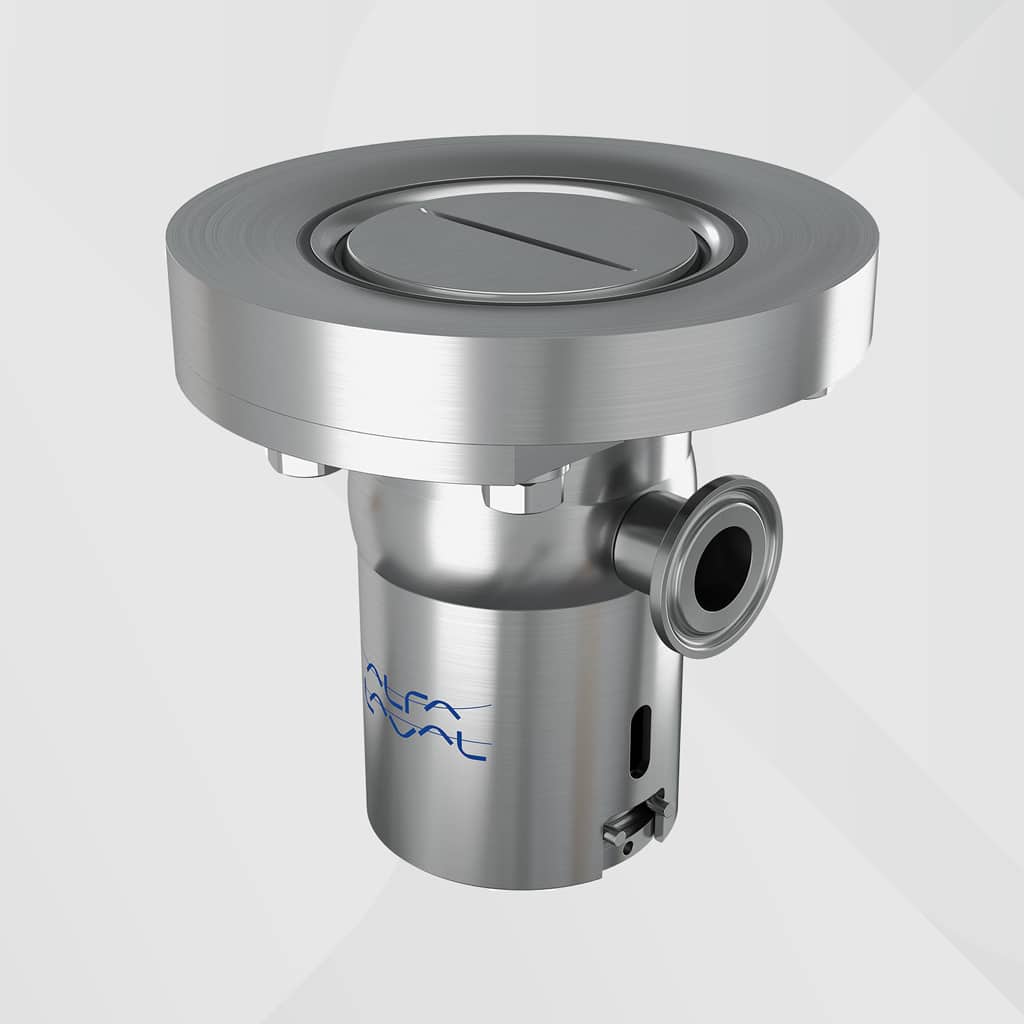

The Alfa Laval PlusClean is a wall and bottom dish-mounted cleaning nozzle designed to clean shadow areas in tanks (e.g. below agitator blades and other tank internals) with a high-impact jet.
PlusClean smoothly integrates into tank walls, and, when activated during CIP, cleans shadow areas with a high-impact fan of cleaning media, giving the market’s first guarantee of 100% internal coverage.
Tackle problematic Tank shadow areas with guaranteed Riboflavin test pass performance, available in side or bottom-mounted configurations for complete coverage.
Material Certificate, 2.2 (standard)
3.1, Q-doc (optional) Product contact parts only.
Alfa Laval PlusClean is available in several variants, making 100% cleaning coverage possible in virtually any application. Depending on the overall design of your vessel, the cleaning device can be installed in either the tank wall or the bottom, ensuring coverage is optimised for your specific application.
PlusClean® is easy to install with a patented, built-in adjustment function. Fluid pressure- responsive media-spring activation opens the device automatically during CIP.
The PlusClean® is available as standard with all wetted stainless-steel components manufactured from AISI 316L. O-rings are made from FEP/SIL and EPDM. The choice of slot (spray pattern) can optimise spray impact length and flow rate at the desired pressure.
Product wetted surface finish: Ra 0.8 μm
Wetting distance: Maximum 7.4 m
Impact cleaning distance: Maximum effective 5.4 m
CIP working pressure: 1.9 – 7 bar
Recommended CIP pressure: 2 – 5 bar
Tank pressure range:
Media driven: –1 to 4 barg
Air driven: –1 to 6 barg
Alfa Laval’s PlusClean guaranteed 100% tank cleaning coverage, plus up to 80% savings in water and cleaning media costs, and no product contamination.
Extend the performance of your PlusClean
The PlusClean is designed for a wide range of tank cleaning duties across the
dairy, food, beverage, personal care, biotechnology and pharmaceutical industries.
Ideal for applications where underblade cleaning is required, the PlusClean system ensures effective and efficient cleaning of beverage tanks, maintaining hygiene standards.
The PlusClean system is perfect for applications where 100% coverage cleaning is required, ensuring thorough, hygienic cleaning in pharmaceutical and chemical environments.
