Indication Unit

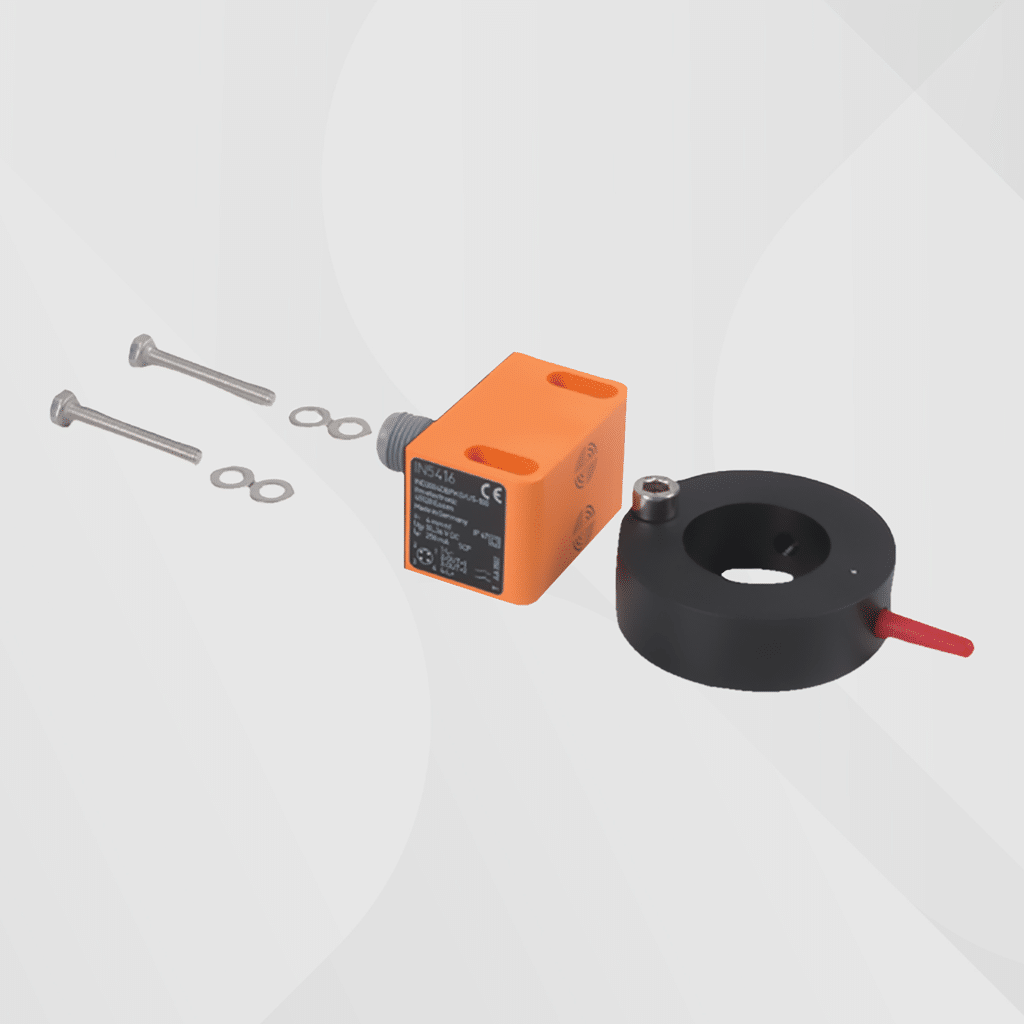

Alfa Laval Indication Unit - Inductive
The Alfa Laval Indication Unit – Inductive is a simple, cost-effective solution for automated feedback on the inductive side of Alfa Laval Butterfly Valves. It continuously monitors Valve operating status, helping improve productivity with its 24/7 real-time feedback. Easy to install and use, this unit works seamlessly with any programmable logic controller (PLC) featuring a PNP/NPN interface, making it a versatile choice for automated Valve control.
This Indication Unit is compatible with any programmable logic controller (PLC) with a PNP/NPN interface.
Indication Unit Benefits
- No mechanical adjustment required
- Non-contact electronic switching elements
- ATEX-certified device designed for intrinsically safe applications
- Enhanced reliability and longer service life for Valve position sensing
Communication
Electrical design: DC PNP
Operating voltage: 10…36 V DC
Output function: 2 x NO
Current consumption: <15 mA
Current rating: 250 mA
Electrical connection: M12 plug
Materials
Alfa Laval Indication Unit - Inductive Technical Data
Steel parts: Stainless steel
Plastic parts: PBT; PC (polycarbonate)
Contact pins: Gold-plated
Environment
Working temperature: -25 °C to +80 °C
Protection rating: IP 67

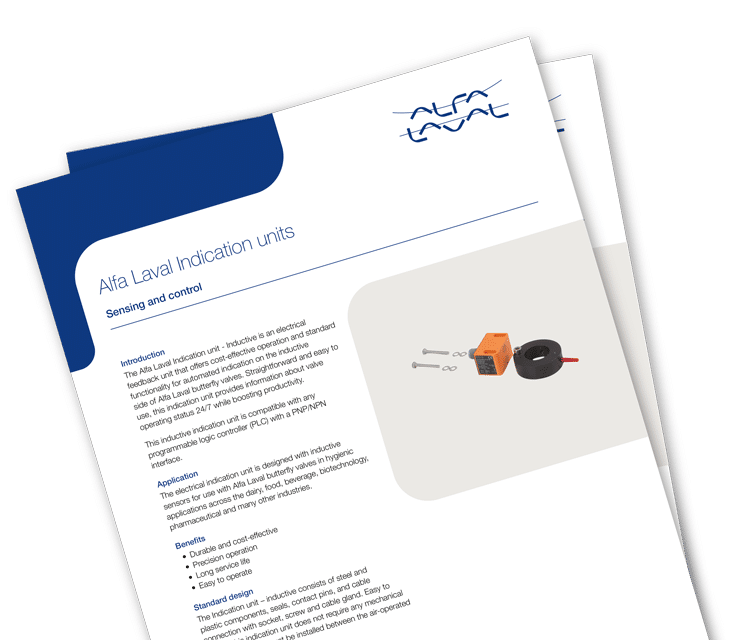

Download the Full
Specification Sheet
Extend the performance of your equipment
Indication Unit Servicing & Maintenance
The Indication Unit is designed with inductive sensors for use with Alfa Laval Butterfly Valves in hygienic applications across the Dairy, Food, Beverage, Biotechnology and Pharmaceutical industries, among many others.
