LKB-F Valve

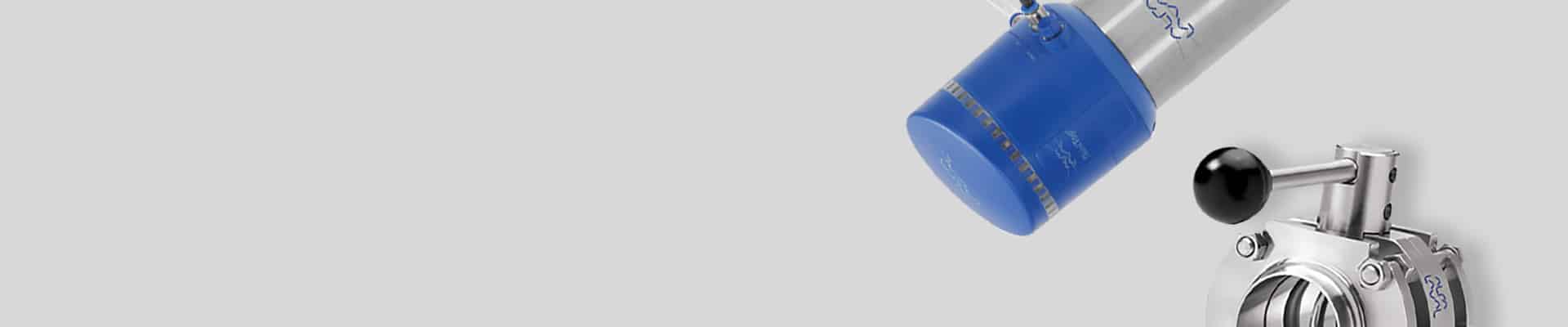

Alfa Laval LKB-F Butterfly Valve
LKB-F Valve Benefits
- High Kv value and low flow resistance
- Quick and easy maintenance
- Economical 4-20mA flow regulation
- Space-saving inline mounting connects easily to the piping system
- High process hygiene
Alfa Laval LKB-F Valve Technical Data
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Temperature range: -10 °C to + 140 °C (EPDM) However max. 95 °C when operating the Valve (All seals)
Actuator
Max. air pressure:
Min. air pressure, NC and NO:
Temperature range:
Air consumption (litres free air):
Weight:
600 kPa (6 bar)
400 kPa (4 bar)
-25 °C to +90 °C
ø85 mm: 0.24 x p (bar)
ø133 mm: 0.95 x p (bar)
ø85 mm: 3 kg
ø133 mm: 12 kg
ATEX
Classification: II 2 G D*
* This equipment is outside the scope of the directive 2014/34/EU and must not carry a separate CE marking according to the directive as the equipment has no own ignition source
Download the Full
Specification Sheet
How the LKB-F Valve Works
The LKB-F Butterfly Valve can be operated with a Pneumatic Actuator, or a handle. There are three versions: normally closed (NC); normally open (NO); and air/air activated (A/A).
For pneumatic operation, an actuator converts axial piston motion into a 90° rotation of the shaft. The torque increases as the Valve disc contacts with the seal ring of the Butterfly Valve, to secure proper closing of the Valve seat.
For manual operation, a handle locks the Valve in open or closed position. Two-position, four-position, regulating 90°-position, and multi-position handles are available. Indication Units can be mounted on manual Valves for feedback on their position.
LKB-F Valve Documents
Recent Success Story
Hygienic Alfa Laval plant upgrade boosts Russian dairy capacity by 50%
Moloko Dairy’s milk reception plant was upgraded with ThinkTop Valve sensing, Alfa Laval Unique SSV Valves, LKB Valves, and control units to increase production capabilities of whole milk, sour cream and yoghurt.
Extend the performance of your Valves
LKB-F Valve
Servicing & Maintenance
LKB-F Valves are designed for on-off duties with low to medium-viscosity liquids in hygienic applications across the Dairy, Food, Brewery and Beverage industries, among many others.
