Unique SSV Tangential Valves

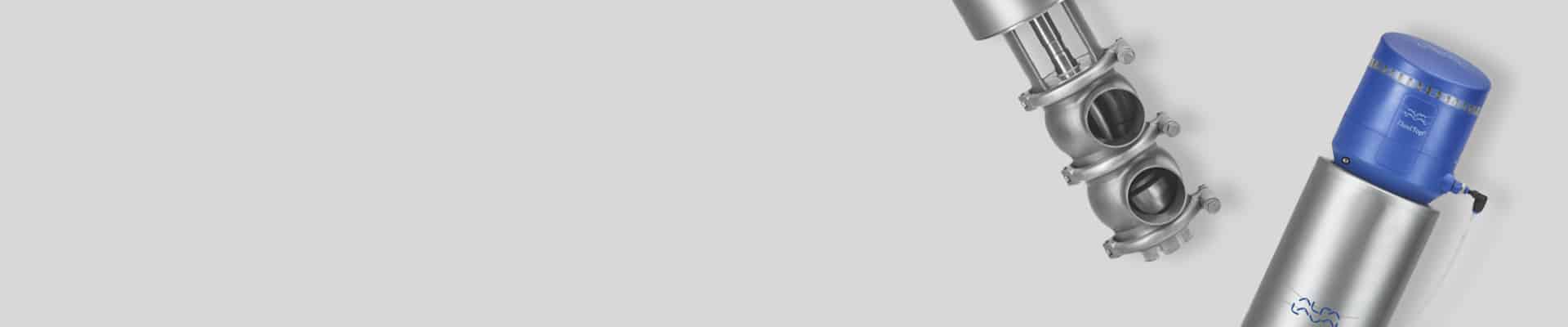

Alfa Laval Unique SSV Tangential Single Seat Valve
The Alfa Laval Unique SSV Tangential is a versatile, reliable pneumatic Single Seat Valve with a single contact surface between plug and seat to minimise contamination risk. Its compact, modular and hygienic design meets the highest hygiene and safety process demands.
Built on the well-proven Unique SSV platform, it provides complete drainability of the Valve body near tank openings, on horizontally mounted ports, or wherever space restrictions make it difficult to install Valves at other angles. A wide range of optional features enables customisation to specific process requirements.
Unique SSV Tangential
Valve Benefits
- Exceptional Valve hygiene and durability
- Superior cleanability – smooth inner Valve body without crevices
- Extended seal life due to the defined seal compression
- Enhanced product safety thanks to the static seal leak detection
- Protection against full vacuum due to the double lip seal
Temperature
Temperature range -10 °C to +140 °C (EPDM)
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure: 500 to 700 kPa (5 to 7 bar)
Materials
Product wetted steel parts: 1.4404 (316L)
Other steel parts: 1.4301 (304)
External surface finish: Semi-bright (blasted)
Internal surface finish: Bright (polished), Ra < 0.8 µm
Product wetted seals: EPDM
Other seals: NBR
Alfa Laval Unique SSV Tangential Valve Technical Data
Download the Full
Specification Sheet
Unique SSV Tangential Valve Key Features
Versatile and Reliable Single Seat Valve
Alfa Laval Unique single seat Valves (SSVs) are robust and reliable pneumatic seat Valves that are supremely versatile. Modularity provides cost-effective and nearly endless possibilities for purpose-built seat Valves that meet high standards of hygiene and aseptic compatibility. Configure the Unique SSV Valve bodies, plugs and actuators to meet virtually any requirement.
Superior Valve Process Safety
The Unique SSV range is built on a proven modular platform used on more than a million Valves in service worldwide. Pressed from a single stainless steel disc, the Valve body is extremely strong and durable, thus ensuring production safety. The enhanced performance of the actuator makes operation safer and more efficient.
Exceptional Valve Hygiene
The Unique SSV range provides excellent hygiene and cleanability. A weld-free, Ra ≤ 0.8μm Valve body eliminates bacteria-trapping crevices. The Valve’s design supports enhanced cleaning-in-place, and a double-acting lip seal minimises risk of cross-contamination. Alfa Laval Unique SSV Valves meet hygienic standards in the dairy, food and beverage, and personal care industries. The range is EHEDG-certified, authorised to carry the 3-A symbol, and provides full traceability in compliance with EU Food Regulation 1935/2004.
Greater Valve Durability
To ensure high sealing quality, the Unique SSV range features defined compression of the O-rings with metal-to-metal contact between plug and seat. This significantly reduces wear and extends Valve service life. The standard Unique SSV is supplied with a semi-maintainable actuator that has a five-year warranty.
Low Total Cost of Ownership
Thanks to its straightforward, reliable design, the Unique SSV range provides long service life, reduced product loss, greater product safety and more processing uptime. Few moving parts reduce service requirements and inventory costs. More effective CIP procedures with reduced cleaning cycles and, subsequently, the reduced use of cleaning fluids, water and utilities also contribute to the Unique SSV’s low total cost of ownership.
How the Unique SSV Tangential Valve Works
The Alfa Laval Unique SSV Tangential is operated by means of compressed air from a remote location. The actuator smooths operation and protects process lines against pressure peaks, while directing or diverting fluids. The Valve can be controlled using an Alfa Laval ThinkTop® V50 or V70 for sensing and control of the Valve.
Unique SSV Tangential Valve Product Documents
Recent Success Story
Sustainable Optimisation Boosts Energy Savings by 30%
By implementing a series of Alfa Laval Single Seat, Mixproof, Check and Butterfly Valves, Turkish Dairy producer Yörükoğlu Süt dramatically enhanced their sustainability.
Extend the performance of your Valves
Unique SSV Tangential Valve Servicing & Maintenance
Unique SSV Tangential Valves are designed to provide complete drainability of the Valve body when space is limited, in a broad range of hygienic applications across the Dairy, Food, Beverage, and Brewery industries, among many others.
