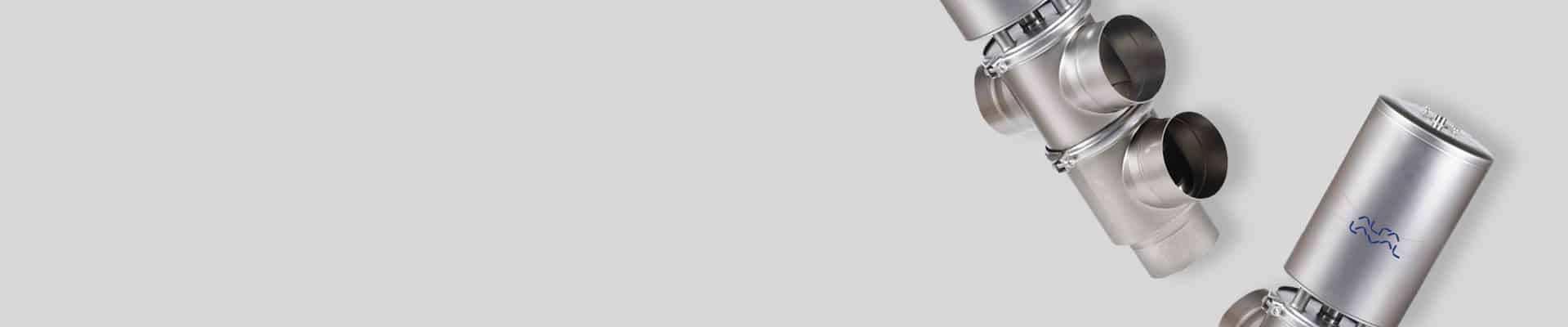

Unique SSV DN125 & DN150 Valves
Alfa Laval Unique SSV DN125 & DN150 Single Seat Valves
Alfa Laval Unique SSV DN125 and DN150 Valves are versatile and reliable pneumatic Single Seat Valves with a single contact surface between the plug and the seat to minimise the risk of contamination. With a modular, hygienic design, the Single Seat Valve meets the highest process demands in terms of hygiene and safety. Few moving parts ensure high reliability and low maintenance costs. A wide range of optional features enables customisation to specific process requirements.
Alfa Laval Unique SSV DN125 and DN 150 Valves are designed for use in a broad range of hygienic applications across the Dairy, Food, Beverage, Brewery and many other industries.
Unique SSV DN125 & DN150 Valve Benefits
- Cost effective and versatile
- Easily handles highly viscous fluids and large particles
- Durable, long-lasting construction
- Compliant with 3-A and hygienic standards
Temperature
Temperature range, standard lip seal: -10 °C to +100 °C (EPDM)
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure, actuator – Sizes DN125-150: 600 to 800 kPa (6 to 8 bar)
Alfa Laval Unique SSV DN125 & DN150 Valves Technical Data
Materials
Product wetted steel parts: 1.4401 (316L)
Other steel parts: 1.4301 (304)
Plug stem sizes DN125-150: 1.4401 (316L)
Product wetted seals: EPDM
Other seals: NBR
Download the Full
Specification Sheet
Unique SSV DN125 & DN150 Valve Key Features
Tried & Tested Valve Safety
The Unique SSV range is built on a proven modular platform used on more than a million Valves in service worldwide. Pressed from a single stainless steel disc, the Valve body is extremely strong and durable, thus ensuring production safety. The enhanced performance of the actuator makes operation safer and more efficient.
Versatile and Reliable Single Seat Valve
Alfa Laval Unique Single Seat Valves (SSVs) are robust and reliable pneumatic Seat Valves that are supremely reliable and versatile. Modularity provides cost-effective and nearly endless possibilities for purpose-built Seat Valves that meet high standards of hygiene. Configure the Unique SSV Valve bodies, plugs and actuators to meet virtually any requirement.
Greater Valve Durability
To ensure high sealing quality, the Unique SSV range features defined compression of the O-rings with metal-to-metal contact between plug and seat. This significantly reduces wear and extends Valve service life. The standard Unique SSV is supplied with a semi-maintainable actuator that has a five-year warranty.
Low Total Cost of Ownership
Thanks to its straightforward, reliable design, the Unique SSV range provides long service life, reduced product loss, greater product safety and more processing uptime. Few moving parts reduce service requirements and inventory costs. More effective CIP procedures with reduced cleaning cycles and, subsequently, the reduced use of cleaning fluids, water and utilities also contribute to the Unique SSV’s low total cost of ownership.
How the Unique SSV DN125 and DN150 Valves Work
The Alfa Laval Unique SSV Standard is operated by means of compressed air from a remote location. The actuator smooths operation and protects process lines against pressure peaks. The Valve can be controlled using an Alfa Laval ThinkTop®.
Unique SSV DN125 and DN150 Valve Documents
Recent Success Story
Sustainable Optimisation Boosts Energy Savings by 30%
By implementing a series of Alfa Laval Single Seat, Mixproof, Check and Butterfly Valves, Turkish Dairy producer Yörükoğlu Süt dramatically enhanced their sustainability.
Extend the performance of your Valves
Unique SSV DN125 & DN150 Valve
Servicing & Maintenance
Unique SSV DN125 & DN150 Valves are built for a broad range of hygienic applications across the Dairy, Food, Beverage, and Brewery industries, among many others.
