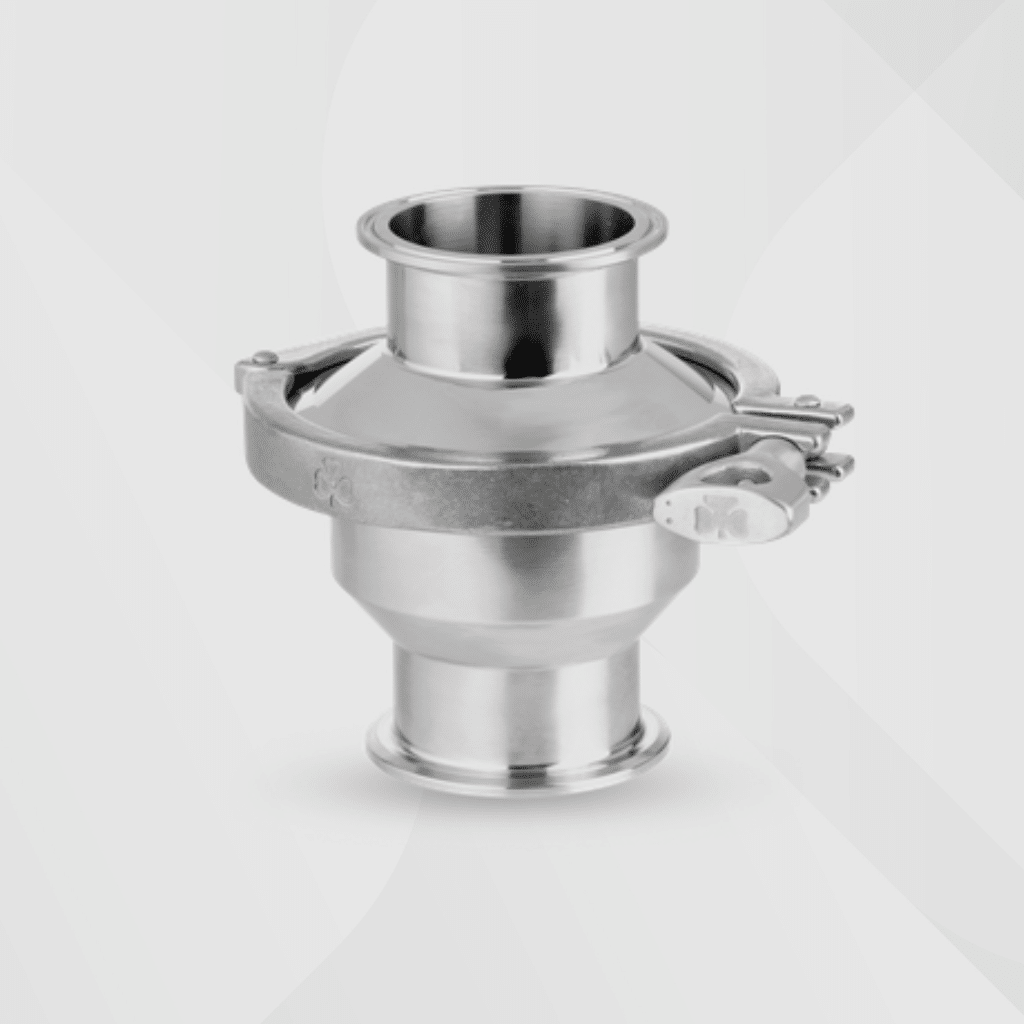

LKC UltraPure Non-Return Valve
Alfa Laval Non-Return Valve
LKC UltraPure
The Alfa Laval LKC UltraPure Non-Return Valve is a hygienic one-way Check Valve designed to prevent reverse flow in high-purity processes. It is simple to install, promoting safety and maintaining high product quality.
The LKC UltraPure Non-Return Valve is designed for single directional product flow, meeting the demands of high-purity applications across the Biotechnology, Pharmaceutical and Personal Care industries.
LKC Non-Return
Valve Benefits
- Highly reliable, self-acting Valve
- Easy to install
- Protect process equipment
- Available with weld and clamp ends for ISO and DIN tubing connections.
- Alfa Laval Q-doc documentation package gives full supply chain transparency
Surface Specification
Internal: Ra < 0.8 µm
ASME BPE designation: SF3
External: Ra < 0.8 µm
Internal: Ra < 0.5 µm
ASME BPE designation: SF1
External: Ra < 0.8 µm
Pressure
Max. product pressure: 1000 kPa (10 bar)
ATEX
Classification: II 2 G D*
* This equipment is outside the scope of the directive 2014/34/EU and must not carry a separate CE marking according to the directive as the equipment has no own ignition source.
LKC UltraPure Non-Return Valve Technical Data

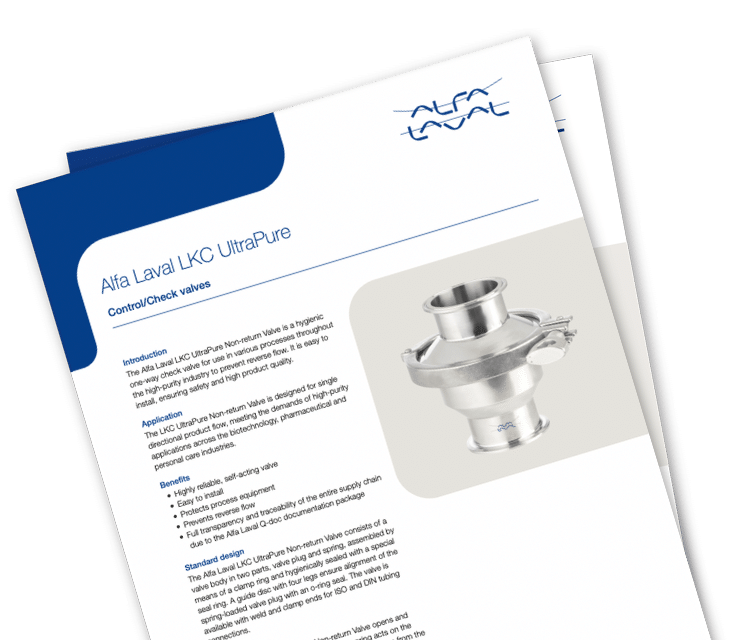

Download the Full
Specification Sheet
Alfa Laval LKC UltraPure Valve Key Features
UltraPure Quality
The LKC UltraPure is developed to facilitate safe and easy installation that ensures optimum integrity. This Valve offers high and consistent quality and thorough documentation which meet the strict standards of the Biotech, Pharmaceutical and Personal Care industries.
High and Consistent Quality
LKC UltraPure Valves are subject to rigorous quality control. Alfa Laval performs all incoming and outgoing quality control and inspections and closely monitors every aspect of the manufacturing process – from raw material sourcing to tolerance and surface finish inspection to packaging and labelling. Tolerances and all surface finishes, for instance, are inspected with calibrated equipment. This helps ensure the highest quality possible.
Completely Documented
All equipment and components in the Tri-Clover UltraPure portfolio are supplied with Alfa Laval Q-doc, a comprehensive documentation package that provides full transparency of the entire supply chain, from raw material to final equipment delivery. This smoothes purchasing and installation procedures as well as facilitates qualification, validation and change control procedures.
How LKC UltraPure Non-Return Valve Works
The spring acts on the Valve plug and keeps the Valve closed until the force from the pressure in the inlet exceeds the force of the spring. If a reverse flow should occur the spring force and the pressure from the outlet will keep the Valve closed.
LKC UltraPure Non-Return Valve Documents
Recent Success Story
Helping a Home and Personal Care Company Boost Growth by 21%
When the Dutch packaging company Kompak Nederland BV wanted to build a state-of-the-art factory for co-making and co-packing 15,000 tons of products a year, they enlisted Alfa Laval for equipment supply and engineering services.
LKC UltraPure Non-Return Valve
Servicing & Maintenance
LKC UltraPure Non-Return Valves are built for a wide range of duties across the Personal Care, Biotechnology and Pharmaceutical industries.
