Alfa Laval LKTC Tank Legs

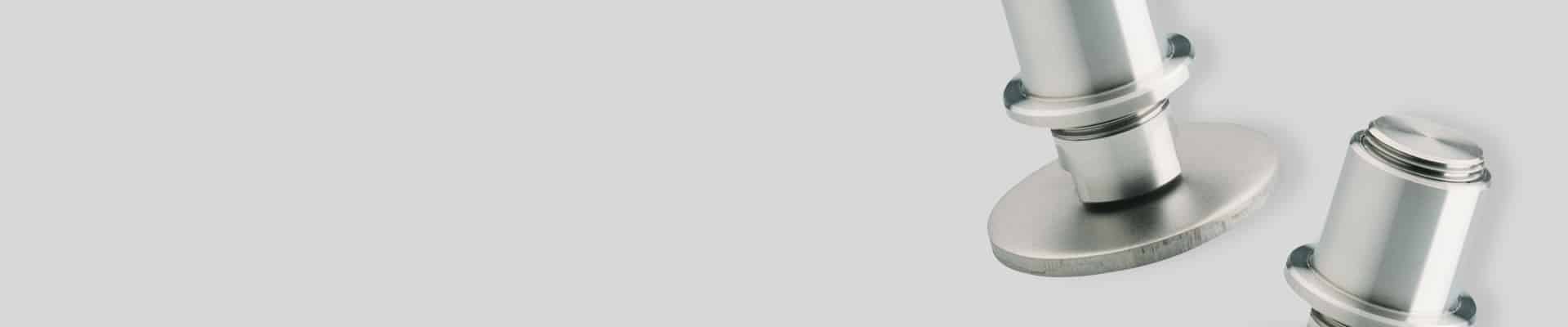

The Alfa Laval LKTC Tank Leg is a fully adjustable stainless steel support designed for freestanding tanks or vessels. Robust and compact, it can be positioned directly on the floor or, for added stability on uneven surfaces, mounted on an optional steel base plate.
Capable of supporting static loads of up to 160,000 N over an area of 7,800 mm², the LKTC Tank Leg ensures strong and reliable support. The sphere-shaped feet, when mounted on a base plate, can withstand loads of up to 19 tons.
Tank Legs USPs
Fully adjustable, fully cleanable, hygienically designed stainless steel supports handle up to 19-ton loads, with manufacturer-authorised spare parts available.
Alfa Laval Tank Legs
Benefits
- New range of hygenic machine and tank feet – available Q4-2010
- Certified according to the 3A- and EHEDG hygienic standards
- Approved for applications with the highest demands for hygiene and cleaning
- Designed to seal all moveable parts 100% hygienically and reduce the cleaning effort to an absolute minimum
Size
3/4 – Max. static load (N): 75000 – Floor area of baseplate(mm²) – 2600
1 – Max. static load (N): 100000 – Floor area of baseplate(mm²) – 5000
1 1/2 – Max. static load (N): 160000 – Floor area of baseplate(mm²) – 7800
Materials
Steel parts: Stainless steel AISI 304
Finish: Base Plate: Mat
Other parts: Semi-bright
LKTC Tank Leg Technical Data
Download the Full
Specification Sheet
The LKTC Tank Leg is designed for a wide range of tank duties across the dairy, food, beverage, personal care, biotechnology and pharmaceutical industries.
