Sight Glass
Alfa Laval Sight Glasses
The Alfa Laval range of Sight Glasses includes seven distinct models designed for mounting or welding onto various pressurised, non-pressurised, and high-temperature tanks, vessels, or piping systems.
Constructed from borosilicate glass in accordance with DIN 7080, these sight glasses feature durable, specially formulated gaskets. They are engineered to withstand a variety of pressures and temperatures, making them suitable for diverse applications.
Sight Glass USPs
Seven distinct hygienically designed Sight Glass models for pressurised and high-temperature applications, with full documentation and manufacturer-authorised spare parts available.

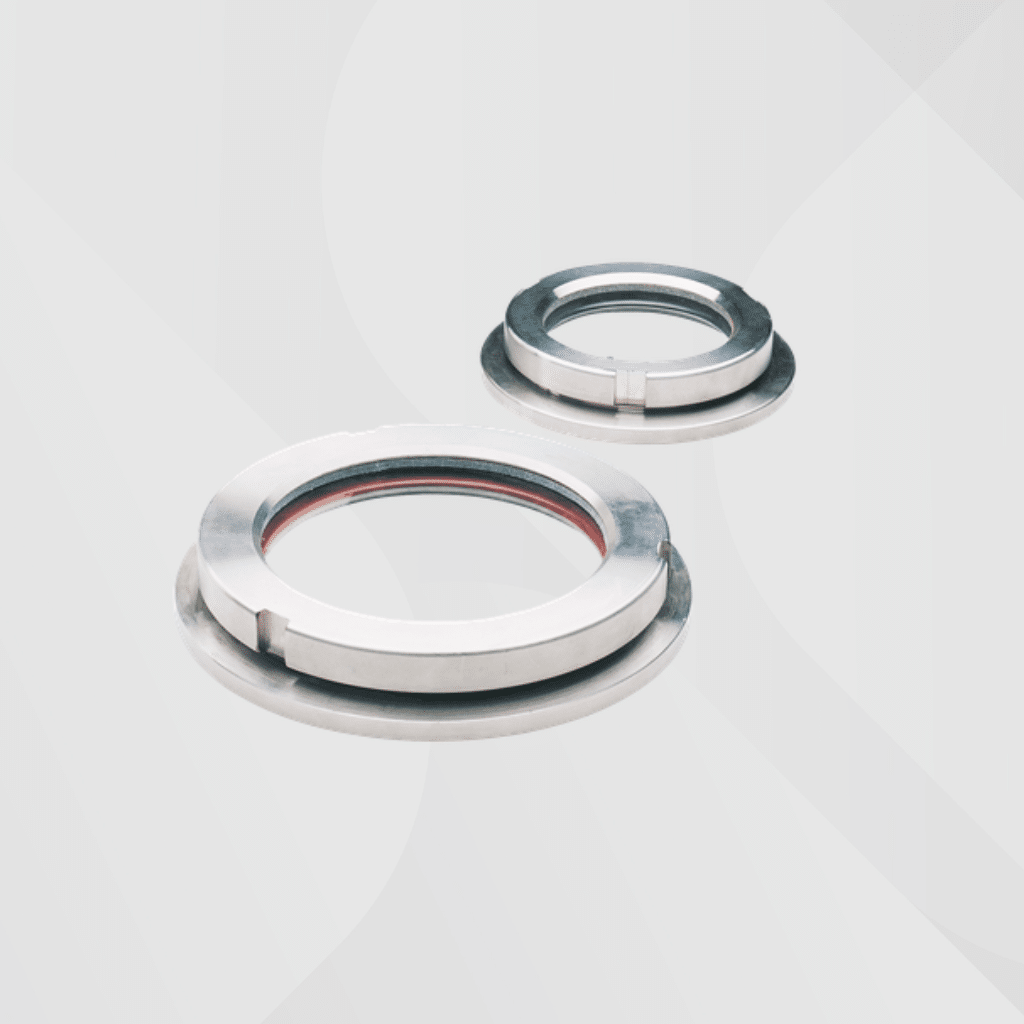

Alfa Laval Sight Glass
Benefits
- Reliably clear viewing quality
- Provide clear, continuous and unobstructed process visibility
- Internally sealed with EPDM rubber seals
- Halogen light source extension available
Pressure
Max product pressure: 2000 kPa (20 bar)
Min product pressure: Full vacuum
Max pressure shock: 3000 kPa (30 bar)
Materials
Product wetted parts: Acid-resistant steel AISI 316L
Other steel parts: Stainless steel AISI 304
Glass: Borosilicate glass
Seals: EPDM rubber
Finish: semi-bright
Sight Glass Technical Data
Download the Full
Specification Sheet
Alfa Laval Sight Glasses are designed for a wide range of tanks across the dairy, food, beverage, personal care, biotechnology and pharmaceutical industries.
