Alfa Laval CM Condition Monitor

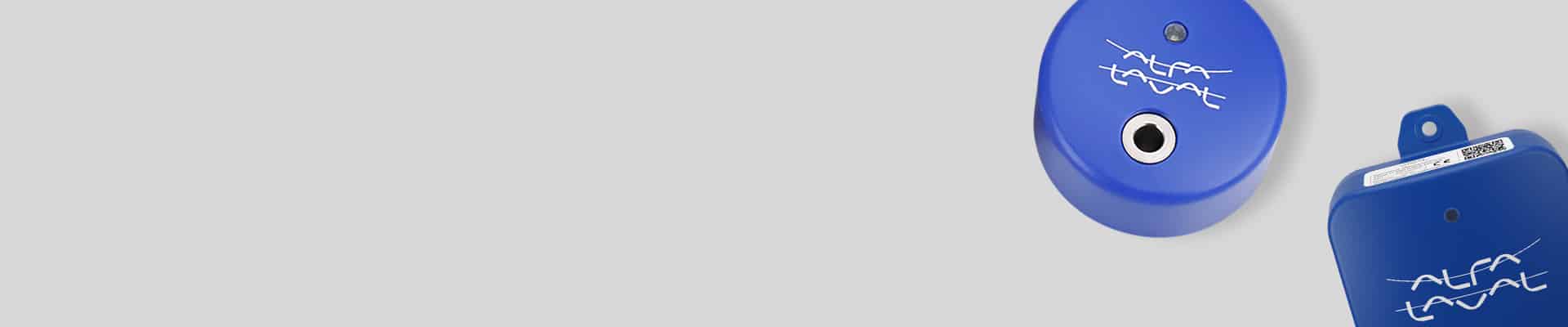

The Alfa Laval CM Condition Monitor is a quick and easy battery operated device, to attach to rotating equipment and detect any change in the equipment behaviour compared to the benchmark baseline on set-up. Providing users with easy, safe data via bluetooth to enable them to optimise process uptime, assist in maintenance scheduling and efficiency and reduce operating costs.
The Alfa Laval CM periodically measures the tri-axial vibration of the installed unit and the internal temperature storing 3 months of data for analysis, comparing it to the original baseline set-up values and pre-set warning and alarms, which if exceeded provide a visible indication via its LED and via the users mobile device. In addition, unique identification can provide the user with service data of the equipment and contacts of service partners to ease the maintenance process, ensuring asset value, total cost of ownership and process continuity.
CM Condition Monitor USPs
CM Condition Monitor Benefits
- Designed to ensure hygienic integrity suitable for plant washdown.
- Easy, low cost installation and set-up. No cables required
- Intuitive mobile app
- Safe data collection
- 3 months trend data assist in early detection of process instability, maintenance scheduling & failure
Technical Data
Plastic parts: PA12 Steel parts: 1.4301 (AISI 304)
Battery: Lithium Thionyl
Chloride Battery life: 2 years typically (data acquisition request every 6 hours)
Size: Ø57 mm x 27.9 mm deep
Weight: 100 grams
Operating Parameters
Vibration frequency: From 10 Hz to 2.5 kHz
3-axis vibration range: 0 – 16 g
Mounting surface temperature: -10 °C to +80 °C
Bluetooth range: 20 meters line of sight
Mobile app: Available for iOS and Android
Environment
Ambient temperature: -10 °C to +60 °C
Protection class: IP69K & NEMA4PW
Alfa Laval CM Condition Monitor Technical Data

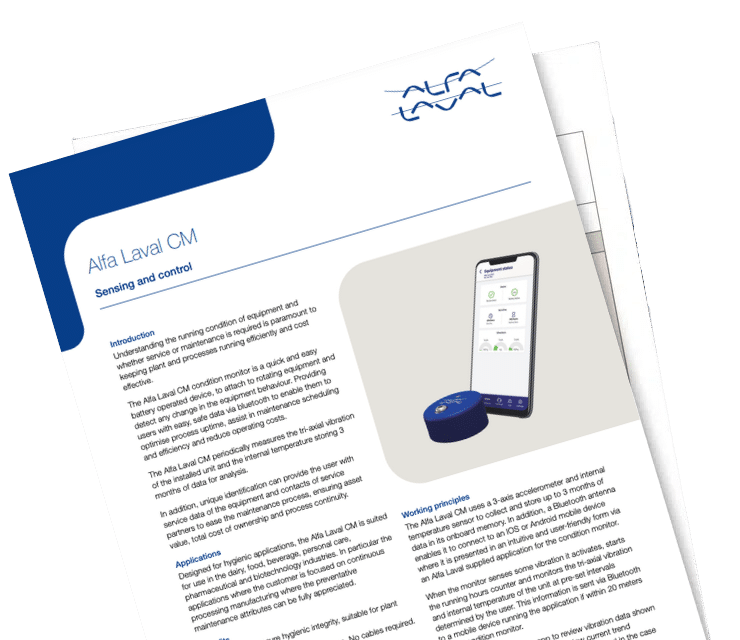

Download the Full
Specification Sheet
Sensors
Mobile App
Dashboard
Recent Success Story
Condition Monitoring Stopped loss of 288,000 bottles
Alfa Laval CM Conditioning Monitor achieved an immediate return on investment, instantly, when they prevented the loss of almost 300,000 bottles at Britvic’s facility in Rugby.
Extend the performance of your equipment
Condition Monitor Servicing & Maintenance
The CM Condition Monitor is designed to sense and indicate the fluid handling process in hygienic applications across the Dairy, Food, Beverage, Biotechnology and Pharmaceutical industries, among many others.
