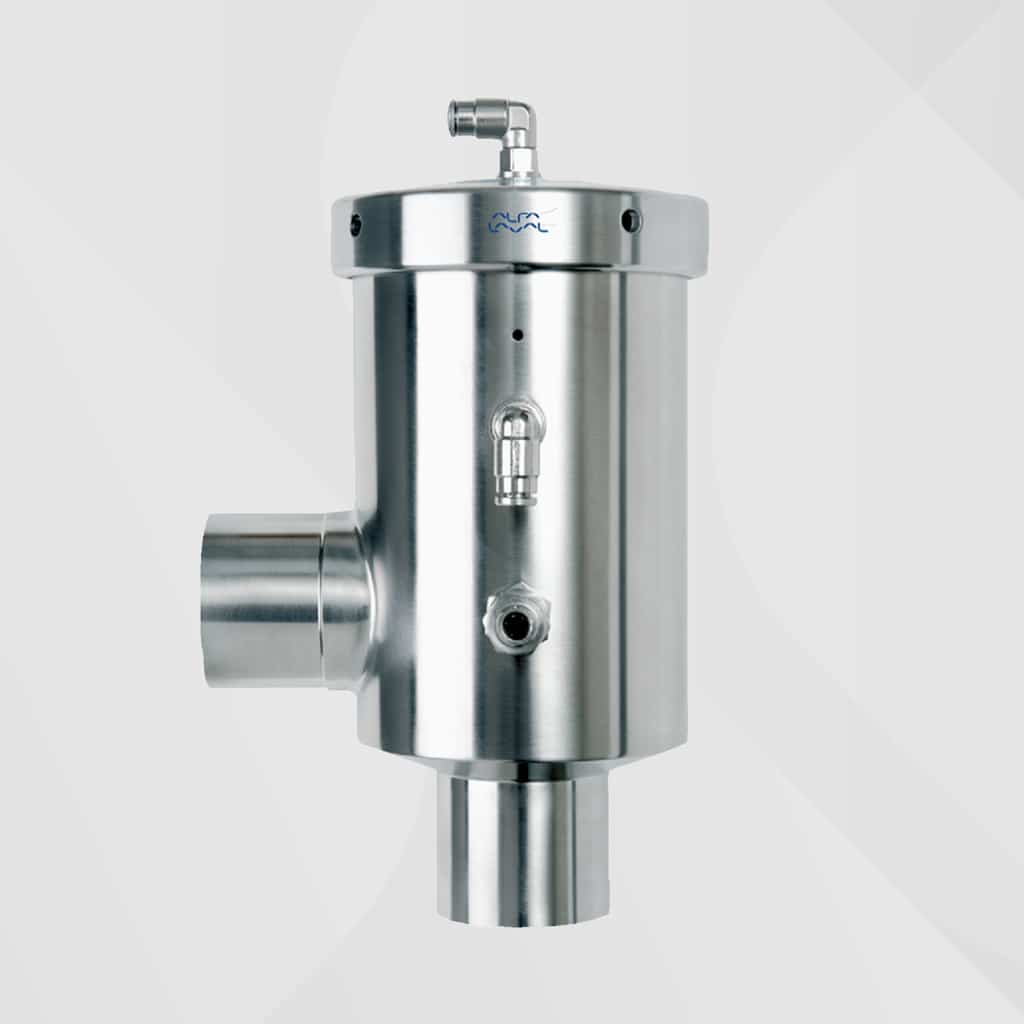

SB Pressure Exhaust Valve
Alfa Laval Pressure
Exhaust Valve
The Alfa Laval SB Pressure Exhaust Valve is a Pneumatic Regulating Valve that automatically releases pressure in a hygienic process tank when it exceeds the set pressure. To ensure safe pressure regulations at all times, the set pressure can easily be adjusted manually or from a remote location that is connected to the central control system.
This Pneumatic Regulating Valve is designed for use in process tanks or vessels for hygienic applications in the brewery, food, dairy, beverage and many other industries.
SB Pressure Exhaust
Valve Benefits
- Reliable control of tank top pressure
- Easy to integrate with SCANDI BREW® safety valves and top plates
- Fully cleanable with Cleaning-in-Place system
- Easy to integrate into existing installations
- Low investment due to simplified installation
Pressure Exhaust Valve Technical Data
Nominal Size
38mm (1.5″)
51mm(2″)
Size (Diameter)
1 – 4 bar
0.5 – 4 bar
Materials
Product wetted steel parts: EN 1.4404 (AISI 316L)
Product wetted steals: EPDM
Product wetted spolymers: Polypropylene

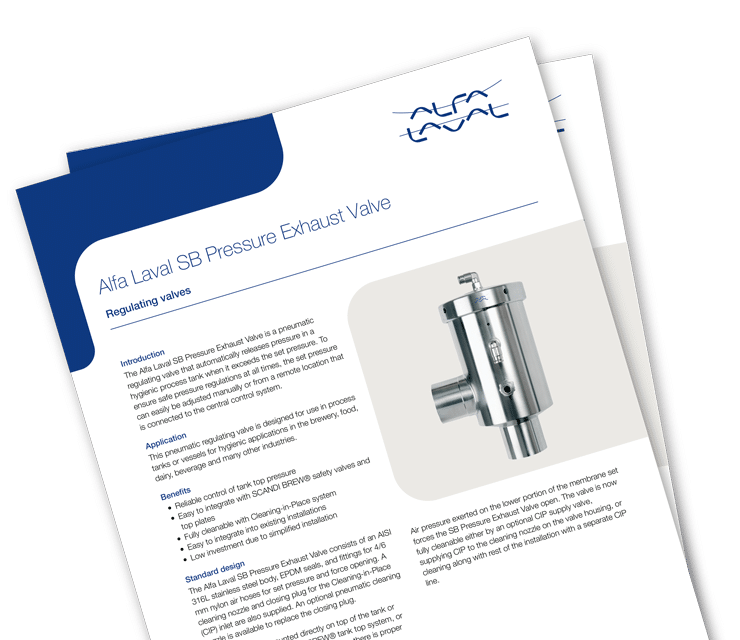

Download the Full
Specification Sheet
SB Pressure Exhaust Valve Key Features
Safe, Effective Pressure Regulation
Easily integrated into a central process control system, this Pneumatic Valve ensures safe, reliable and hygienic performance by releasing pressure in the process tank when it exceeds the set point pressure. To ensure safe pressure regulations at all times, the set point pressure can easily be adjusted manually or from a remote location that is connected to the central control system.
Hygienic, Easy-to-Clean Design
To meet exceptionally high levels of hygiene, this Regulating Valve features simple, straightforward design. Smooth surfaces and food-grade finishes contribute to superior hygiene and cleanability. For fast, effective cleaning, a cleaning nozzle is supplied for inline cleaning of the Valve at the same time as Cleaning-in-Place of the vent/recovery mains takes place. Alternatively, an optional CIP Supply Valve is available to connect a CIP system directly to the valve housing.
Flexible Valve Mounting
With flexible mounting positions, the valve can be positioned directly on tank top, as part of a tank top system or elsewhere along the pipework as long as there is proper drainage from the Valve housing.
How the SB Pressure Exhaust Valve Works
Construction
The Alfa Laval SB Pressure Exhaust Valve consists of an AISI 316L stainless steel body, EPDM seals, and fittings for 4/6 mm nylon hoses for set point pressure and force opening. A cleaning nozzle and closing plug for the Cleaning-in-Place (CIP) inlet are also supplied.
Operating Principle
The Valve is operated by means of the set point pressure being applied to the top of a membrane set. The pressure regulation will be identical to the set point pressure. The set point pressure is either reduced to the required pressure by means of a manual precision regulator or an IP converter controlled by a PLC.
Pressure Exhaust Valve Product Documents
Recent Success Story
Dairy Expansion Improves Production Capacity, Hygiene, Uptime, and Savings
To boost productivity, the TINE Dairies, Norway’s largest Dairy product producer, distributor and exporter, selected equipment from Alfa Laval based on proven safety, hygiene and economy.
Extend the performance of your Valves
Alfa Laval Pressure Exhaust Valve
Servicing & Maintenance
SB Pressure Exhaust Valves are built for a wide range of duties across the Dairy, Food, Beverage, Personal Care, Biotechnology and Pharmaceutical industries.
