Unique Mixproof Tank Outlet

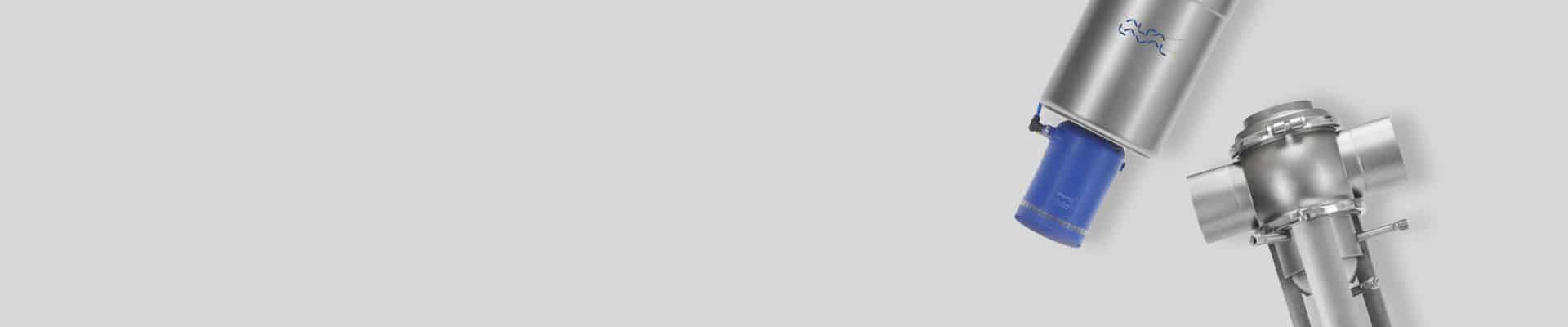

Alfa Laval Unique Mixproof Tank Outlet Valve
Two independent plugs and seals, with double lip seals, guarantee safe, hygienic, long-lasting, spillage-free operation and reduce the risk of product contamination. Use the Unique Mixproof Tank Outlet Double Seat Valve with the Alfa Laval ThinkTop sensing and control units to control fluid handling into and out of the processing tank and onward to the processing line.
Double Seat Tank Outlet
Valve Benefits
- Enhanced product safety due to minimise risk of contamination
- Maximum yield due to spillage-free routing of fluids
- Enhanced cleanability of critical connections
- Leakage detection holes enable visual wear inspection without disassembly
- Easily adapted to specific process requirements
Temperature
Temperature range: -5 °C to +125 °C (Depending on rubber quality)
Pressure
Max. product pressure: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure: Max. 800 kPA (8 bar)
Materials
Product wetted steel parts: 1.4404 (316L)
Other steel parts: 1.4301 (304)
Internal/external (Matt): (blasted) Ra<1.6 µm
Internal Bright (Polished): Ra<0.8 µm
Internal/external Bright (internal polished) Ra<0.8 µm
Product wetted seals: EPDM
CIP seals: EPDM
Actuator seals: NBR
Guide strips: PTFE
Alfa Laval Mixproof Tank Outlet Valve Technical Data
Download the Full
Specification Sheet
Unique Mixproof Tank Outlet Valve Key Features
Reliable and Cost-Effective
Manufacturers can depend on the Unique Mixproof CIP and Unique Mixproof Process Valves for cost-effective product protection. Utilising Alfa Laval’s double seat technology with seat lift, these Valves ensure that fluids remain separated, allowing for thorough cleaning and preventing contamination by harmful microorganisms. Their fully balanced design allows them to manage high pressure with ease, eliminating the risk of pressure shocks. Additionally, these Valves are certified to meet FDA, 3A, and other recognised industry standards.
Adaptable and Flexible
The Unique Mixproof CIP and Unique Mixproof Process Valves offer compact, modular designs that provide increased process flexibility. Available in various types and sizes to accommodate diverse applications, these Valves enable manufacturers to easily adjust to evolving process demands. Pairing them with Alfa Laval ThinkTop control units further enhances process control and operational flexibility.
Increased Sustainability
How the Unique Mixproof Tank Outlet Valve Works
The Alfa Laval Unique Mixproof Tank Outlet is a double seat Valve controlled from a remote location by means of compressed air. The Valve is a normally closed (NC) Valve with two independent plug seals, forming a leakage chamber. In the rare case of accidental product leakage, fluid flows into the leakage chamber and discharges through the leakage outlet.
When the Valve is open, the leakage chamber is closed. The product can then flow from the tank to the pipeline. The Valves can be cleaned to any level (hygienic or high purity) according to the needs of the specific process. There is virtually no product spillage when operating the valve.
Unique Mixproof Tank Outlet Valve Documents
Recent Success Story
Sustainable Optimisation Boosts Energy Savings by 30%
By implementing a series of Alfa Laval Single Seat, Mixproof, Check and Butterfly Valves, Turkish dairy producer Yörükoğlu Süt dramatically enhanced their sustainable profile.
Extend the performance of your Valves
Unique Mixproof Tank Outlet Valve
Servicing & Maintenance
Unique Mixproof Tank Outlet Valves are designed for continuous flow management and process safety in hygienic tank inlets and outlets across the dairy, food and beverage industries, among many others.
