Unique Mixproof Horizontal
Tank Valve

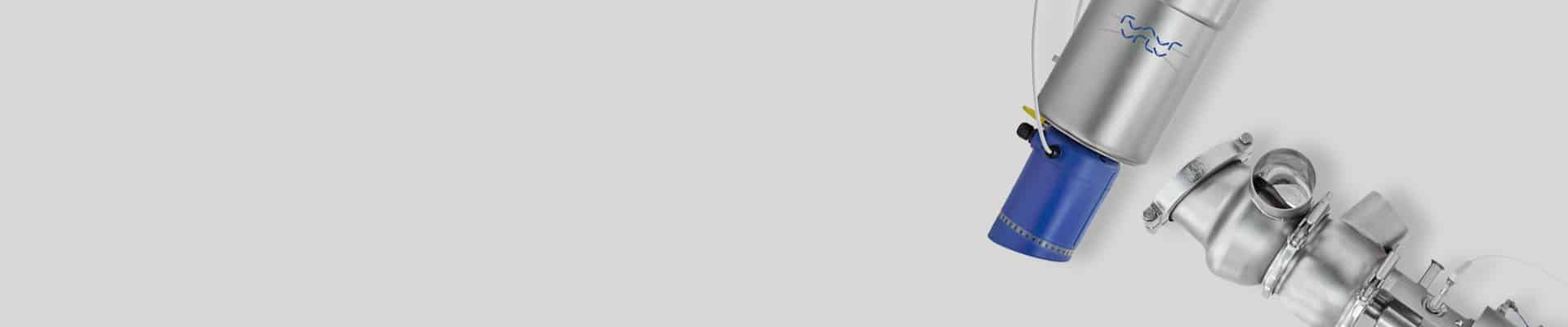

Alfa Laval Unique Mixproof Horizontal Tank Valve
Alfa Laval Unique Mixproof Horizontal Tank Valves are versatile, highly flexible double block-and-bleed valves for the safe and efficient fluid management at matrix piped system intersection points. The Unique HT Mixproof Valve enables two different products or fluids to flow through the same valve with no risk of cross-contamination.
The Mixproof Horizontal Tank Valve ensures no areas of the tank inlet or outlet go uncleaned. It is specifically designed for horizontal mounting on the side of a tank, or at the bottom of a cone-formed tank. Its design provides complete cleanability in the shadow area, where there is no tank side pressure or flow to clean the connection. The Valve provides greater flexibility by enabling simultaneous tank filling and emptying.
Double Seat Horizontal Tank Valve Benefits
- Enhanced product safety, cleanability and operating efficiency
- Spillage-free operation with leakage detection
- Easy maintenance and parts replacement
- Low total cost of ownership
- Capable of cleaning shadow areas in tank connections
Temperature
Temperature range: -5 °C to +125 °C (Depending on rubber quality)
Pressure
Max. product pressure in pipeline: 1000 kPa (10 bar)
Min. product pressure: Full vacuum
Air pressure: Max. 800 kPA (8 bar)
Materials
Product wetted steel parts: 1.4404 (316L)
Other steel parts: 1.4301 (304)
External surface finish: Semi-bright (blasted)
Internal surface finish: Bright (polished), Ra < 1.6 µm
Product wetted seals: EPDM
CIP seals: EPDM
Actuator seals: NBR
Guide strips: PTFE
Alfa Laval Mixproof Horizontal Tank Valve Technical Data
Download the Full
Specification Sheet
Unique Mixproof Horizontal Tank Valve Key Features
Reduced Downtime
Based on the well-proven and exceptionally versatile Unique Mixproof Valves, this horizontal Mixproof tank Valve features many of the same components, such as the actuator, yoke and seals, and therefore the same spare parts. This provides the benefits of easy serviceability and low total cost of ownership.
Exceptional Spillage-Free Operation
A state-of-the-art Double-Seat design provides long-lasting, spillage-free operation thus minimising the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.
Easy Valve to Maintain and Clean
Unique Mixproof Valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals.
How the Unique Mixproof Horizontal Tank Valve Works
The Alfa Laval Unique HT Mixproof Valve is a normally closed (NC) Valve controlled from a remote location by means of compressed air. The Valve has two independent plugs to separate the liquids; the space between the seals forms a leakage chamber. Leakage is rare, but, if it occurs, product passes into the leakage chamber and out the bottom outlet for easy detection.
When the Valve is open, the leakage chamber is closed. The product then flows from one line to the other. The radial Valve design ensures virtually no product spillage during operation.
Unique Mixproof Horizontal Tank Valve Documents
Recent Success Story
Sustainable Optimisation Boosts Energy Savings by 30%
By implementing a series of Alfa Laval Single Seat, Mixproof, Check and Butterfly Valves, Turkish Dairy producer Yörükoğlu Süt dramatically enhanced their sustainability.
Extend the performance of your Valves
Unique Mixproof Horizontal Tank Valve
Servicing & Maintenance
Unique Mixproof Horizontal Tank Valves are designed for continuous flow management and process safety for horizontal tank inlet and outlet applications across the Dairy, Food and Beverage industries, among many others.
