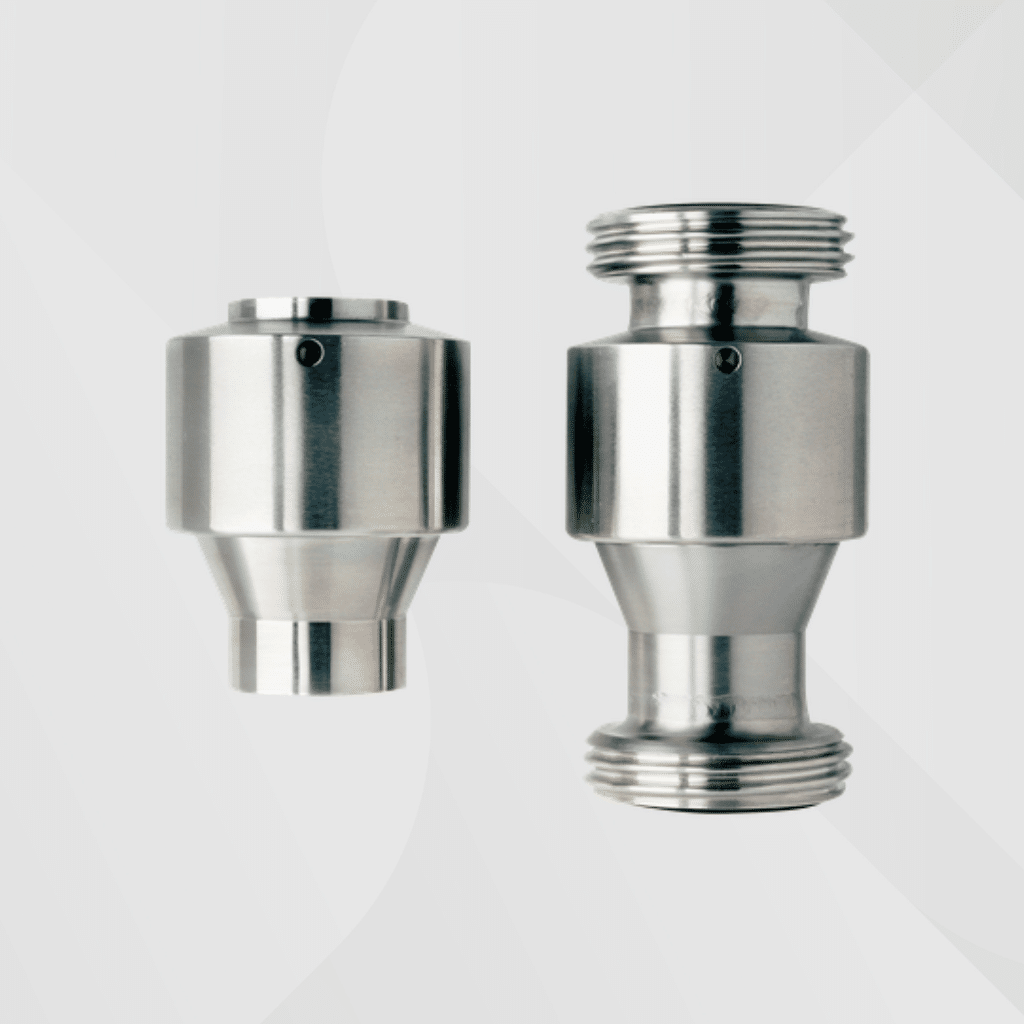

SB Self-Cleaning CO2 Valve
Alfa Laval SB
Self-Cleaning CO2 Valve
The Alfa Laval SB Self-cleaning CO2 Valve is a combination gas supply-gas vent Valve to control the flow of carbon dioxide in tank top systems and other applications in order to vent and/or pressurise a vessel. Fully cleanable and self-draining, this hygienic Valve provides safe, reliable and cost-effective gas management.
This gas management Valve is designed to vent and/or pressurise vessels used in hygienic applications, mainly used in Brewery industries.
SB Self-Cleaning
CO2 Valve Benefits
- Cost-effective, hygienic design
- Safe, reliable operation
- Minimised risk of overpressure and underpressure
- Self-cleaning and self-draining
- Straightforward installation
Maximum Gas Flow (both directions) at max. 0.1 bar ΔP
SB Self-Cleaning CO2 Valve Technical Data
Size
1”/DN25
1½”/DN40
2”/DN50
2½”/DN65
3”/DN80
4”/DN100
Flow (m3/h)
25
50
150
250
450
600
Materials
Steel parts: EN 1.4404 (AISI 316L) with 3.1 cert.
Product wetted seals: EPDM
Product wetted polymers: Polypropylene
Download the Full
Specification Sheet
SB Self-Cleaning CO2 Valve Key Features
Safe, Reliable Operation
The straightforward design of this gas management Valve provides long-lasting operation. By minimising the risk of overpressure or under pressure, the Valve contributes to safe, reliable operation and maximum uptime.
Hygienic, Self-Cleaning Valve
Manufactured of AISI 316L stainless steel, the Valve features a special drilled opening in the Valve body, which effectively cleans all Valve parts during Cleaning-in-Place (CIP). This minimises the risk of contamination. Alfa Laval 3.1 traceability certification is also available upon request.
How the SB Self-Cleaning CO2
Valve Works
The stainless steel spring keeps the Valve body open, allowing gas to flow freely in both directions. When CIP (clean-in-place) fluid flows in the opposite direction, it pushes against the spring, forcing the Valve body to close. A specially drilled opening in the Valve body ensures thorough, hygienic cleaning of all Valve components.
SB Self-Cleaning CO2 Valve Documents
Recent Success Story
Dairy Expansion Improves Production Capacity, Hygiene, Uptime, and Savings
To boost productivity, the TINE Dairies, Norway’s largest Dairy producer, distributor and exporter, selected Dairy equipment from Alfa Laval based on proven safety, hygiene and economy.
Extend the performance of your Valves
SB Self-Cleaning CO2 Valve
Servicing & Maintenance
SB Self-Cleaning CO2 Valves are designed to vent and/or pressurise vessels used in hygienic applications, mainly within the Brewing industry.
