GJ ToteBlast Station

Clean Totes and IBCs - IBC Wash Station

The Alfa Laval GJ ToteBlast Station enables you to handle your tote and IBC cleaning in-house, in less than half the time. This complete, all-in-one tote cleaning system utilises patented rotary technology to blast residue from the tank interior in a precise, global indexing pattern. The GJ ToteBlast’s cleaning technology ensures the entire tote interior is thoroughly cleaned in the most efficient manner, utilising as little time, energy, chemicals, and water as possible.

This IBC wash station comes equipped with everything you need to set up a tote cleaning system. The simplicity in design and the affordability, coupled with the most durable and effective technology makes this the ideal tote cleaning system for any application, industrial or sanitary.

GJ ToteBlast Station

GJ ToteBlast Station​ USPs

Complete automated Tote Cleaning System utilising Alfa Laval’s patented rotary technology to reduce time, energy and chemical usage.

ToteBlast Station
Benefits

Gamajet ToteBlast
Benefits

Pump

  • Type: Grundfos CRI vertical multistage
  • Mechanical seal: Single shaft seal, C/SiC, Viton
  • Motor: Standard NEMA 180TC framed with totally enclosed fan cooled. 2 poles = 3600 rpm at 60 Hz, IP 55, insulation class F. Energy efficiency IE2

Control Panel

  • Type: On/Off/Reset with internal timer
  • Power rating: Three phase
  • Mains voltage: 240/480 dual voltage
  • On/off: Local mains disconnect
  • Insulation class: NEMA
  • Timers: Internal adjustable .1 min – 1+ hours

Alfa Laval IBC Wash Station Technical Data

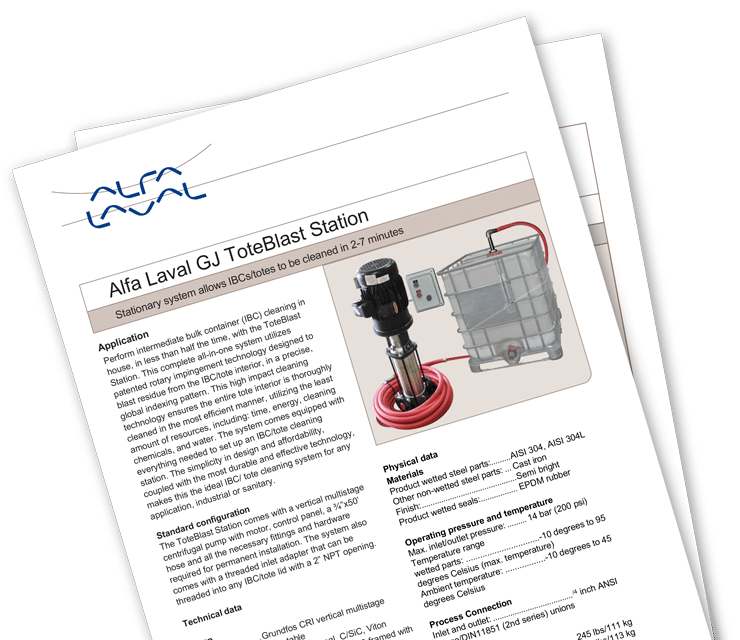

SPEC sheet 5

Download the Full
Specification Sheet

How the IBC Cleaner Works

The ToteBlast Station comes with a vertical multistage centrifugal pump with motor, control panel, a 3⁄4”x50’ hose and all the necessary fittings and hardware needed for permanent installation. The system also comes with a threaded inlet adapter that can be fitted into any IBC/tote lid with a 2” NPT opening.
Say-goodbye-to-all-residues

SAY GOODBYE

to all Residues

IBC Washing System Documents

Gamajet ToteBlast
Product Datasheet

Datasheet
brochure

Gamajet ToteBlast
Instruction Manual

Recent Success Story

Helping an Oil Industry Business Reduce, Reuse and Recycle

With an inventory of over 80 totes to clean, the IBC Wash Station paid for itself immediately

Extend the performance of your IBC Washing System

GJ ToteBlast Station
Servicing & Maintenance

Our dedicated servicing and maintenance team can provide you with the parts and expertise to ensure uptime and maximise operational efficiency.

The IBC Wash Station is designed to tackle cleaning duties across the Dairy, Food, Beverage, Personal Care, Biotechnology and Pharmaceutical industries.

Related Industries

Boost hygiene while reducing energy and water use. Alfa Laval’s range of processing solutions can help you improve yield and drive greater efficiency.

Our range of solutions are centred around increasing output while minimising contamination and enhancing efficiency, making them ideal for applications in the Personal Care industry.

The technologies we supply improve sustainability through enhanced efficiency, reducing waste and emissions, while increasing yields and end product quality.

Enquire About IBC Wash Station
