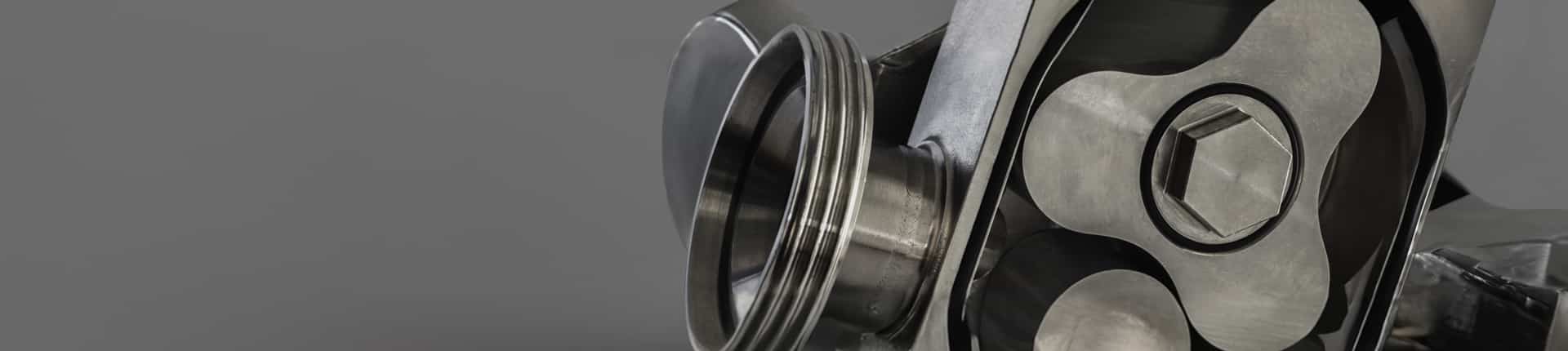

The Alfa Laval SX UltraPure Rotary Lobe Pump is designed with optimised pump head geometry and multi-lobe rotors to ensure low-shear operation with minimum pulsation. This makes it the best choice for maintaining the integrity of delicate products in high-purity applications.
The pump is designed according to the most stringent hygienic design standards and with verified, effective Cleaning-in-Place (CIP) and Sterilisation-in-Place (SIP).
For another pump in the Alfa Laval SX series, see the SX Rotary Lobe Pump.
Product wetted steel parts: W. 1.4404 (316L) with material traceability 3.1 according to EN 10204
Inside surface finish: Mech Ra ≤ 0.8
Gearbox: Stainless steel
Base plate: Stainless steel
Coupling guard: Stainless steel
Rotor: Four-lobe
Product wetted elastomers: EPDM – USP Class VI, 249.8°F. Chapter 88, and Chapter 87
Other elastomers: FPM
Shaft seal: Single mechanical (R00)
Rotary seal face: Silicon Carbide
Stationary seal face: Silicon Carbide
Single, single flush and double mechanical available. All options are fully front loading and interchangeable.
Max. flush pressure, single flush: Max. 0.5 bar
Max. flush pressure, double mechanical: Max. 1 bar over product pressure
Water consumption, flushed or double mechanical: 0.5 l/min
Flush connections: BSPT or NPT
Gear motor, 4 poles, to IEC metric standard, 50/60 Hz, suitable for frequency conversion, IP55, insulation class F
Extend the performance of your Pumps
The SX UltraPure Rotary Lobe Pump is designed for a wide range of duties across the Dairy, Food, Beverage, Personal Care, Biotechnology and Pharmaceutical industries.
Boost hygiene while reducing energy and water use. Alfa Laval’s range of processing solutions can help you improve yield and drive greater efficiency.
The SX UltraPure rotary lobe pump ensures gentle product treatment in pharmaceutical applications, maintaining product integrity while meeting strict hygiene and quality standards.
