Centrifugal Pumps > LKHexApplications

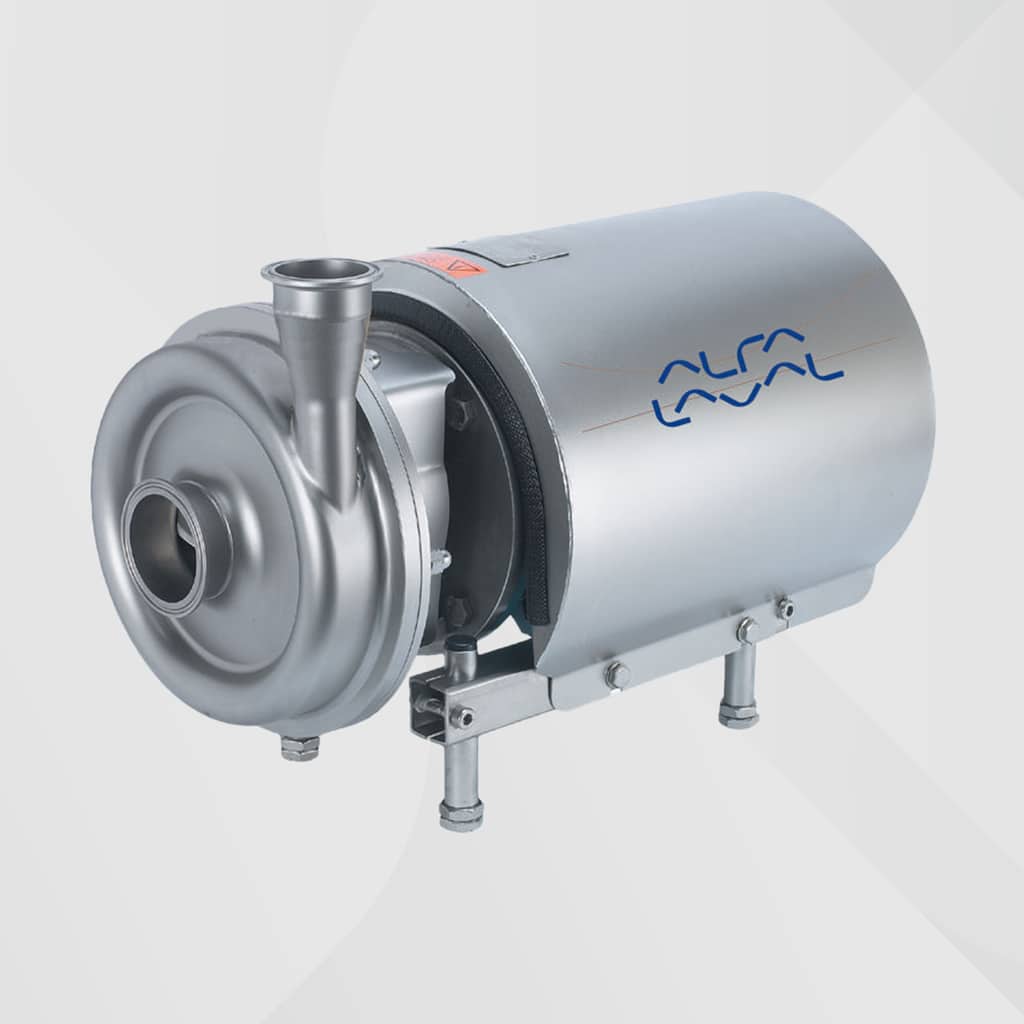

The LKHex pump is a highly efficient and economical centrifugal pump, which meets the requirements of the ATEX directive 94/9 IEC group II, categories 2 and 3, temperature class T3 and T4. LKHex is available in following sizes, LKHex-10, -15, -20, -25, -35, -40, -45, -50, -60, -70. The LKHex performance data are equal to the performance of LKH pump.

Standard design

The LKHex has a stainless steel shroud for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs.

Shaft seals

The LKH pump is equipped with either a single shaft seal or a double mechanical shaft seal (DMS). The seal ring is in acid-resistant steel AISI 329 with sealing surface in silicon carbide and rotating seal rings in carbon or silicon carbide.


How It Works

Pump range

LKH centrifugal pumps are currently available in 13 sizes to handle capacities up to 500 m3/hour and pressures up to 190 H/(m). Options include types of shaft seals, flushing arrangements and elastomers.

LKHex for applications in explosive environments

Engineered for use in potentially explosive environments, the LKHex is available in nine sizes and conforms to the provisions of ATEX directive 94/9/EC Group II, Categories 2 and 3.

LKH pump range, composite curve

LKH pump range, composite curve

Unique impeller design

The semi-open impeller with a special vane design ensures particularly low NPSHr (Net Positive Suction Head required). This helps prevent cavitation and minimizes the risk of mechanical damage.

Balance holes in the impeller enhance circulation around the shaft seal and reduce axial forces. This minimizes wear on the shaft seal and motor bearings.

External shaft seal

The front-loading shaft seal, with the spring and washers mounted on the atmospheric side, makes maintenance fast, easy and inexpensive. It takes just a few minutes to replace the shaft seal. In addition, the balanced design minimizes the risk of seal opening during unforeseen pressure shock.

Optimised shaft seal

One shaft seal fits a wide pump range. The exact same LKH single shaft seal fits 11 models of LKH pumps as well as all models of the SolidC pump. The LKH seal also has the option of single or double flushed, which can be interchanged in minutes with just a few extra components.

This standardization reduces inventory and makes wear parts replacement quick and easy.

Compression couplings

Another notable feature is the compression coupling. This securely attaches the stub shaft to the motor shaft with precision alignment. Setup is simple, operations secure and noise and vibration minimized. What’s more, the coupling helps prolong the service life of both shaft seal and motor.
