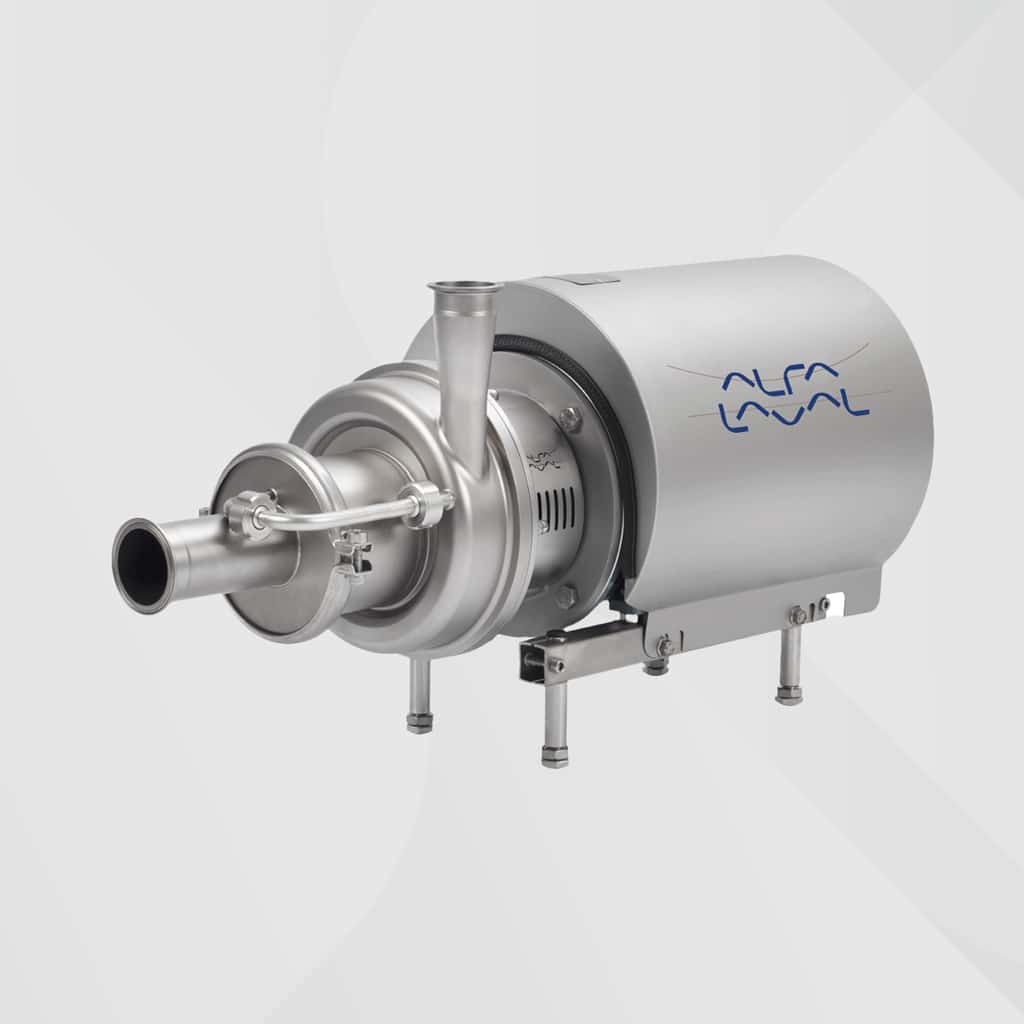

The Alfa Laval LKH Prime Centrifugal Pump combines advanced air-screw technology, optimised impeller and casing geometry for quiet, reliable operation, increased energy efficiency, and a reduced carbon footprint.
Based on the market-leading Alfa Laval LKH Pump, the LKH Prime meets the most stringent requirements in the Food, Dairy, Beverage and Personal Care industries. The LKH Prime is available in three sizes to handle capacities up to 100 m3/h and differential pressures up to 7.5 bar at 50 Hz.
Product wetted steel parts: W. 1.4404 (316L)
Other steel parts: Stainless steel
Inside surface finish: Standard blasted
Product wetted elastomers: EPDM
Rotary seal face: Carbon
Stationary seal face: Silicon Carbide
50Hz: 1.5 – 45 kW
60Hz: 1.8 – 45 kW
Air evacuation: 2800 – 3600 rpm
Pumping product (no air): 900 – 3600 rpm
In cases where the pumped media contains a mixture of air and liquid in the suction line, a continuous liquid ring is formed in the canister by airscrew rotation. Due to the canister’s eccentric position relative to the airscrew, an air chamber forms, which separates into pockets between the airscrew vanes.
The airscrew’s continuous rotation forces air pockets through the canister into the suction stage of the impeller which are then pumped out via the discharge. To ensure the liquid ring is maintained at all times, fluid is returned to the canister from the discharge via the recirculation pipe. When there is no air present, the pump acts as a traditional Centrifugal Pump.
The LKH Prime is available in three sizes to handle capacities up to 100 m3/h and differential pressures up to 7.5 bar at 50 Hz.
As standard, the LKH prime pump is equipped with a single mechanical shaft seal but is also available with a double mechanical shaft seal. The front-loading shaft seal, with the spring and washers mounted on the atmospheric side, makes maintenance fast, easy and inexpensive, taking just a few minutes to replace. In addition, the balanced design minimises the risk of seal opening during unforeseen pressure shock.
Byrne Dairy Relies on Alfa Laval LKH Prime
Extend the performance of your Pumps
The LKH Prime Self-Priming Pump is designed for a wide range of duties across the Dairy, Food, Beverage, Personal Care, Biotechnology and Pharmaceutical industries.
Designed as a scavenge pump for applications where air may be present in the liquid, the LKH Prime ensures efficient, reliable transfer while maintaining hygienic standards.
Ideal for emptying tanks and similar applications, the LKH Prime pump provides efficient, hygienic product recovery, reducing waste and optimising production processes.
