Application

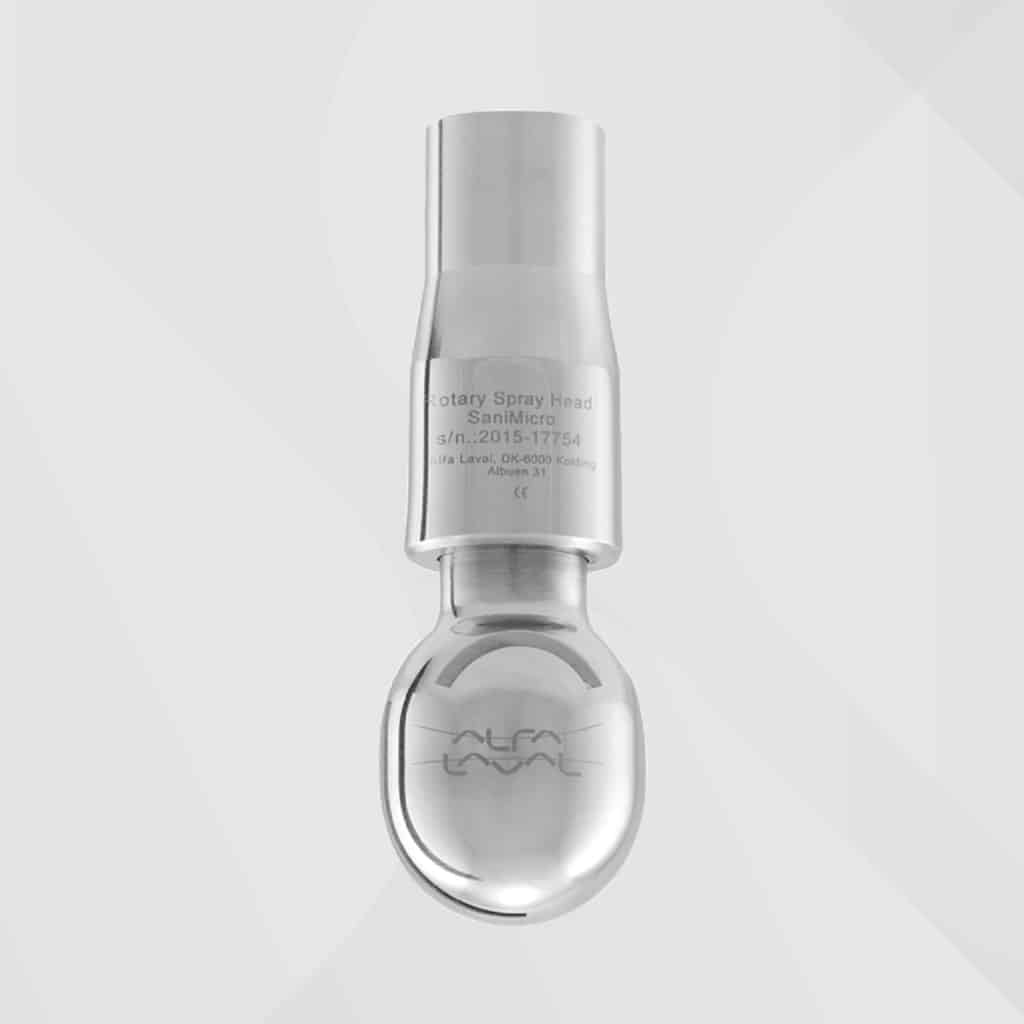

The (Toftejorg) Alfa Laval SaniMicro is a Rotary Spray Head that uses cleaning media to provide coverage and impact. The device is a superior alternative to conventional static spray balls because it uses low volumes of cleaning fluid at low pressure. The double ball bearing in the rotating head of the SaniMicro makes it suitable for any industrial cleaning task, including tanks, reactors, vessels and other containers ranging from 0.05 to 1 m3 (10 – 250 US gallons), depending on size and cleaning task.
Working Principle
The cleaning media’s flow causes the head of the SaniMicro to rotate, and the fan-shaped jets lay out a whirling pattern throughout the vessel or tank. This creates the impact needed to efficiently remove any product residue, and the cascading flow covers all internal surfaces of the vessel.
360º
270º
180º
Material Certificate, 2.2 (standard)
3.1, Q-doc and ATEX (optional)
Rotary Spray Heads like the SaniMicro effectively clean tanks using less water, less energy and less cleaning agents than Static Spray Balls. This helps reduce consumption of high-purity water and chemicals.
As the SaniMicro Spray Head rotates, its fan-shaped jets produce a swirling pattern throughout the vessel. This generates the wetting/impact needed for the efficient removal of the residual product.
Designed with minimal internal pressure loss, Alfa Laval Rotary Spray Heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure for the SaniMicro is 2 bar.
Generally speaking, routine inspection is the only maintenance required for Alfa Laval Rotary Spray Head devices. These devices are so reliable that a single device in many cases can meet the requirements of a plant over its entire lifetime. The SaniMicro is lubricated by the cleaning media it dispenses.
Lubricant: Self-lubricates with cleaning fluid
Wetting radius: Max. 2.5 m
Impact cleaning radius: Max. effective 0.6 m
Working pressure: 1 – 3 bar
Recommended pressure: 2 bar
The flow of cleaning media and water causes the SaniMicro head to rotate, with the fan-shaped jets laying out a swirling pattern throughout the tank or reactor. The wetting/impact generated efficiently removes residual product, and the cascading flow ensures all of the vessel’s internal surfaces are covered.
Replacing Static Spray Balls for Increased Efficiency
One of the UK’s largest hard cheese processors increased the efficiency of its raw milk tank cleaning operations by 35% while reducing water usage by 30% with Alfa Laval Rotary Spray Heads.
