Application
The Alfa Laval MultiMagnum is a Rotary Spray Head that uses cleaning media for coverage and impact. An effective alternative to traditional Static Spray Balls, the MultiMagnum uses low volumes of cleaning fluid at low pressure. The MultiMagnum’s rotating head contains a double ball bearing that makes the device suitable for any industrial cleaning application, including vessels, reactors, tanks and other containers from 5 m3 to 50 m3 (1,300 – 13,000 US gallons), depending on size and proportions.
Working principle
The flow of the cleaning media makes the head of the MultiMagnum rotate, and lay out a swirling pattern through the vessel with its fan-shaped jets. This creates the impact necessary to efficiently remove residual product; the cascading flow covers all the tank’s internal surfaces.
MultiMagnum Rotary Spray Heads are designed to be installed at any angle.
360º
270º Up
180º Down
Material Certificate, 2.1 (standard)
Rotary Spray Heads like the MultiMagnum effectively clean tanks using less water, less energy and less cleaning agents than static spray balls. This helps reduce consumption of high-purity water and chemicals.
As the MultiMagnum Spray Head rotates, its fan-shaped jets produce a swirling pattern throughout the vessel. This generates the wetting/impact needed for the efficient removal of the residual product.
Designed with minimal internal pressure loss, Alfa Laval Rotary Spray Heads rotate at pressures of less than 0.1 bar; however, the recommended operating pressure for the MultiMagnum is 2 bar.
Generally speaking, routine inspection is the only maintenance required for Alfa Laval Rotary Spray Head devices. These devices are so reliable that a single device in many cases can meet the requirements of a plant over its entire lifetime. The MultiMagnum is lubricated by the cleaning media it dispenses.
Lubricant: Self-lubricates with cleaning fluid
Wetting radius: Max. 3 m
Impact cleaning radius: Max. effective 2 m
Working pressure: 1 – 3 bar
Recommended pressure: 2 bar
Replacing Static Spray Balls For Increased Efficiency

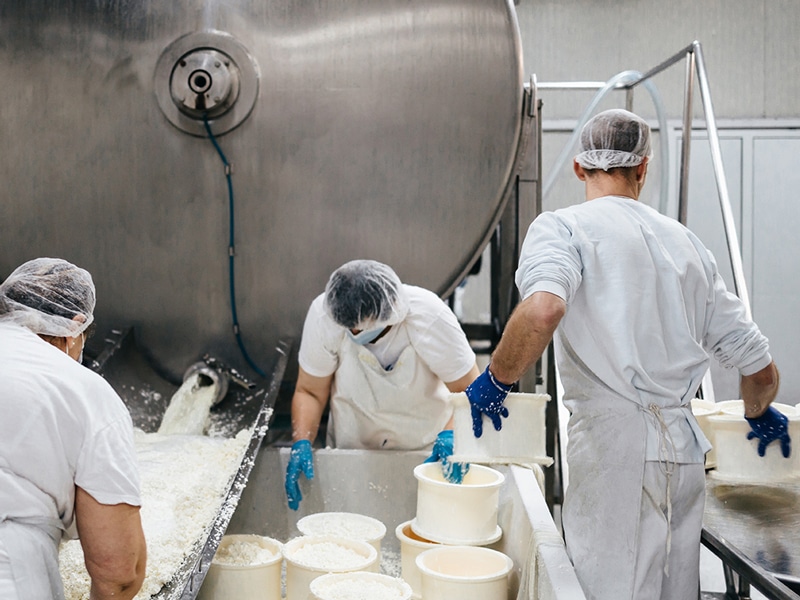

One of the UK’s largest hard cheese processors increased the efficiency of its raw milk tank cleaning operations by 35% while reducing water usage by 30% with Alfa Laval Rotary Spray Heads.
